# !pip install pandas matplotlib seaborn plotly openpyxl

import pandas as pd

# Display all columns
pd.set_option('display.max_columns', None)

# Display all outputs from each cell
from IPython.core.interactiveshell import InteractiveShell
InteractiveShell.ast_node_interactivity = "all"

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import plotly.express as px
import plotly.graph_objects as go
from plotly.subplots import make_subplots

# For plotly to load directly in Jupyter notebook
import plotly.io as pio
pio.renderers.default = 'iframe'

# Load the data from a CSV file
economies = pd.read_csv("economies.csv")

# Or load the data from an Excel file
economies = pd.read_excel("economies.xlsx")

# Display the first few rows of the DataFrame
economies.head()

# Display the information about the DataFrame
economies.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 561 entries, 0 to 560
Data columns (total 11 columns):
 #   Column             Non-Null Count  Dtype
---  ------             --------------  -----
 0   code               561 non-null    object
 1   country            561 non-null    object
 2   year               561 non-null    int64
 3   gdp_percapita      558 non-null    float64
 4   gross_savings      490 non-null    float64
 5   inflation_rate     555 non-null    float64
 6   total_investment   490 non-null    float64
 7   unemployment_rate  312 non-null    float64
 8   exports            509 non-null    float64
 9   imports            506 non-null    float64
 10  income_group       561 non-null    object
dtypes: float64(7), int64(1), object(3)
memory usage: 48.3+ KB

# Display summary statistics of the DataFrame
economies.describe()

# Check for missing data
economies.isnull().sum()

code                   0
country                0
year                   0
gdp_percapita          3
gross_savings         71
inflation_rate         6
total_investment      71
unemployment_rate    249
exports               52
imports               55
income_group           0
dtype: int64

# Check data types
economies.dtypes

code                  object
country               object
year                   int64
gdp_percapita        float64
gross_savings        float64
inflation_rate       float64
total_investment     float64
unemployment_rate    float64
exports              float64
imports              float64
income_group          object
dtype: object

# Load the populations data from an Excel file
populations = pd.read_excel("populations.xlsx")

# Inspection methods for populations DataFrame
populations.head()

populations.info()

populations.describe()

# Checking for missing data and data types for populations DataFrame
populations.isnull().sum()

populations.dtypes

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 645 entries, 0 to 644
Data columns (total 10 columns):
 #   Column               Non-Null Count  Dtype
---  ------               --------------  -----
 0   country_code         645 non-null    object
 1   country              645 non-null    object
 2   year                 645 non-null    int64
 3   fertility_rate       627 non-null    float64
 4   life_expectancy      623 non-null    float64
 5   size                 645 non-null    int64
 6   official_state_name  645 non-null    object
 7   sovereignty          645 non-null    object
 8   continent            645 non-null    object
 9   region               645 non-null    object
dtypes: float64(2), int64(2), object(6)
memory usage: 50.5+ KB

country_code            0
country                 0
year                    0
fertility_rate         18
life_expectancy        22
size                    0
official_state_name     0
sovereignty             0
continent               0
region                  0
dtype: int64

country_code            object
country                 object
year                     int64
fertility_rate         float64
life_expectancy        float64
size                     int64
official_state_name     object
sovereignty             object
continent               object
region                  object
dtype: object

# Remove rows with any missing values
economies_cleaned_any = economies.dropna(how='any')
economies_cleaned_any

# Remove rows only if all values are missing
economies_cleaned_all = economies.dropna(how='all')
economies_cleaned_all

# Remove rows with missing values in specific columns
economies_cleaned_subset = economies.dropna(subset=['exports', 'imports'])
economies_cleaned_subset

# Remove columns with any missing values
economies_no_missing_columns = economies.dropna(axis=1)

# Display the DataFrame after removing columns with missing values
economies_no_missing_columns.head()

# Replace missing values with a specific value (e.g., 0 for numerical columns, 'Unknown' for categorical columns)
economies_fill_value = economies.fillna({
    'gdp_percapita': 0,
    'gross_savings': 0,
    'inflation_rate': 0,
    'total_investment': 0,
    'unemployment_rate': 0,
    'exports': 0,
    'imports': 0,
    'income_group': 'Unknown'
})

# Display the DataFrame after replacing missing values with specific values
economies_fill_value.head()

# Change year to be a string instead of an integer
economies_char_year = economies.astype({'year': 'str'})

# Display the information on the DataFrame with year as a string
economies_char_year.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 561 entries, 0 to 560
Data columns (total 11 columns):
 #   Column             Non-Null Count  Dtype
---  ------             --------------  -----
 0   code               561 non-null    object
 1   country            561 non-null    object
 2   year               561 non-null    object
 3   gdp_percapita      558 non-null    float64
 4   gross_savings      490 non-null    float64
 5   inflation_rate     555 non-null    float64
 6   total_investment   490 non-null    float64
 7   unemployment_rate  312 non-null    float64
 8   exports            509 non-null    float64
 9   imports            506 non-null    float64
 10  income_group       561 non-null    object
dtypes: float64(7), object(4)
memory usage: 48.3+ KB

# Change the year of string type back to integer
economies_int_year = economies_char_year.astype({'year': 'int'})

# Display the information on the DataFrame with year as a string
economies_int_year.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 561 entries, 0 to 560
Data columns (total 11 columns):
 #   Column             Non-Null Count  Dtype
---  ------             --------------  -----
 0   code               561 non-null    object
 1   country            561 non-null    object
 2   year               561 non-null    int64
 3   gdp_percapita      558 non-null    float64
 4   gross_savings      490 non-null    float64
 5   inflation_rate     555 non-null    float64
 6   total_investment   490 non-null    float64
 7   unemployment_rate  312 non-null    float64
 8   exports            509 non-null    float64
 9   imports            506 non-null    float64
 10  income_group       561 non-null    object
dtypes: float64(7), int64(1), object(3)
memory usage: 48.3+ KB

# Rename the 'income_group' column to 'income_category'
economies_renamed = economies.rename(columns={'income_group': 'income_category'})
economies_renamed.head()

# Set unique combinations of 'code' and 'year' as the index
economies_indexed = economies.set_index(['code', 'year'])
economies_indexed.head()

# Reset the index
economies_reset = economies_indexed.reset_index()
economies_reset.head()

# Filter rows where 'gdp_percapita' is greater than 20,000
economies_high_gdp = economies[economies['gdp_percapita'] > 20000]
economies_high_gdp.head()

# Filter rows where 'income_group' is 'High income'
economies_high_income = economies[economies['income_group'] == 'High income']
economies_high_income.head()

# Filter rows where total_investment is not NaN
non_null_investment = economies[economies['total_investment'].notna()]
non_null_investment.head()

# Filter rows where inflation_rate is less than 0 and income_group is 'Low income'
deflation_low_income = economies[(economies['inflation_rate'] < 0) & (economies['income_group'] == 'Low income')]
deflation_low_income.head()

# Filter rows where gdp_percapita is greater than 40,000 and year is less than or equal to 2016
top_gdp_2010_2015 = economies[(economies['gdp_percapita'] > 40000) & (economies['year'] <= 2015)]
top_gdp_2010_2015.head()

# Remove rows with any missing values
populations_cleaned_any = populations.dropna(how='any')
populations_cleaned_any

# Remove rows only if all values are missing
populations_cleaned_all = populations.dropna(how='all')
populations_cleaned_all

# Remove rows with missing values in specific columns
populations_cleaned_subset = populations.dropna(subset=['fertility_rate', 'life_expectancy'])
populations_cleaned_subset

# Remove columns with any missing values
populations_no_missing_columns = populations.dropna(axis=1)
populations_no_missing_columns.head()

# Replace missing values with a specific value (e.g., 0 for numerical columns,
# 'Unknown' for categorical columns)
populations_fill_value = populations.fillna({
    'fertility_rate': 0,
    'life_expectancy': 0,
    'size': 0,
    'continent': 'Unknown',
    'region': 'Unknown'
})

populations_fill_value.head()

# Convert the 'year' column to string type
populations['year'] = populations['year'].astype(str)
populations.dtypes

country_code            object
country                 object
year                    object
fertility_rate         float64
life_expectancy        float64
size                     int64
official_state_name     object
sovereignty             object
continent               object
region                  object
dtype: object

# Convert it back to integer
populations['year'] = populations['year'].astype(int)
populations.dtypes

country_code            object
country                 object
year                     int64
fertility_rate         float64
life_expectancy        float64
size                     int64
official_state_name     object
sovereignty             object
continent               object
region                  object
dtype: object

# Rename the 'fertility_rate' column to 'fertility'
populations_renamed = populations.rename(columns={'fertility_rate': 'fertility'})
populations_renamed.head()

# Set the 'country_code' column as the index
populations_indexed = populations.set_index('country_code')
populations_indexed.head()

# Filter the DataFrame to include only rows where the 'continent' is 'Asia'
populations_asia = populations[populations['continent'] == 'Asia']
populations_asia.head()

# Filter the DataFrame to include only rows where the 'year' is 2020
populations_2020 = populations[populations['year'] == 2020]
populations_2020.head()

# Filter the DataFrame to include only rows where the 'fertility_rate' is greater than 2
populations_high_fertility = populations[populations['fertility_rate'] > 2]
populations_high_fertility.head()

grouped_data = economies.groupby('income_group')['gdp_percapita'].mean()
grouped_data

income_group
High income            33781.737556
Low income               688.904493
Lower middle income     2329.609629
Not classified          7805.646667
Upper middle income     6679.059320
Name: gdp_percapita, dtype: float64

# Convert income_group to uppercase using map()
economies_plus = economies.copy()
economies_plus['income_group_upper'] = economies['income_group'].map(str.upper)
economies_plus.head()

# Calculate the median gdp_percapita and inflation_rate for each income_group
median_values = economies.groupby('income_group').agg({
    'gdp_percapita': 'median',
    'inflation_rate': 'median'
})
median_values

# Create a pivot table of gdp_percapita and inflation_rate by income_group and year
pivot_table = pd.pivot_table(
    economies,
    values=['gdp_percapita', 'inflation_rate'],
    index=['income_group'],
    columns=['year'],
    aggfunc='mean'
)
pivot_table

# Show counts of income_group by year
cross_tab = pd.crosstab(economies['income_group'], economies['year'])
cross_tab

# Count the occurrences of each income_group
income_group_counts = economies['income_group'].value_counts()
income_group_counts

income_group
High income            180
Lower middle income    159
Upper middle income    147
Low income              72
Not classified           3
Name: count, dtype: int64

# Group data by continent and calculate the mean life expectancy
grouped_data = populations.groupby('continent')['life_expectancy'].mean()
grouped_data

continent
Africa           61.897980
Asia             73.611049
Europe           78.443978
North America    74.679029
Oceania          71.408114
South America    73.433389
Name: life_expectancy, dtype: float64

# Convert continent to uppercase using map()
populations_plus = populations.copy()
populations_plus['continent_upper'] = populations['continent'].map(str.upper)
populations_plus.head()

# Calculate the median fertility rate and life expectancy for each continent
median_values = populations.groupby('continent').agg({
    'fertility_rate': 'median',
    'life_expectancy': 'median'
})
median_values

# Create a pivot table of fertility rate and life expectancy by continent and year
pivot_table = pd.pivot_table(
    populations,
    values=['fertility_rate', 'life_expectancy'],
    index=['continent'],
    columns=['year'],
    aggfunc='mean'
)
pivot_table

# Create a cross-tabulation of continent and year
cross_tab = pd.crosstab(populations['continent'], populations['year'])
cross_tab

# Count the occurrences of each region
region_counts = populations['region'].value_counts()
region_counts

region
Caribbean                    66
Middle East                  54
Eastern Africa               54
Western Africa               48
Southern Europe              45
Southern and Central Asia    42
South America                36
Southeast Asia               33
Eastern Europe               30
Western Europe               27
Central Africa               27
Central America              24
Micronesia                   21
Eastern Asia                 21
Northern Africa              18
Nordic Countries             18
Polynesia                    15
Southern Africa              15
Melanesia                    15
North America                12
Baltic Countries              9
British Islands               9
Australia and New Zealand     6
Name: count, dtype: int64

# Filter data for a specific country
afg_data = economies[economies['code'] == 'AFG']

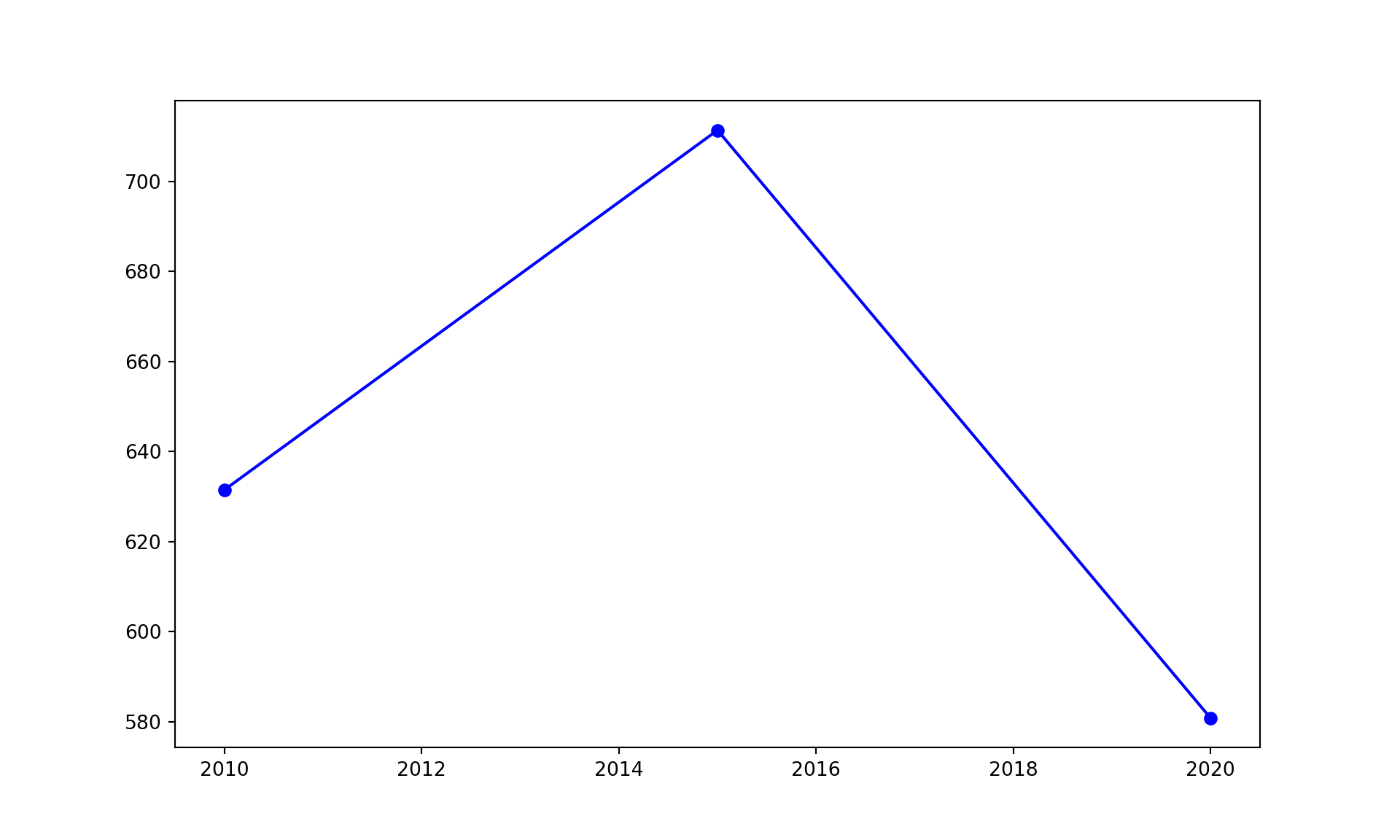

# Line plot of gdp_percapita over the years
plt.figure(figsize=(10, 6))
plt.plot(afg_data['year'], afg_data['gdp_percapita'],
         marker='o', linestyle='-', color='b')
plt.show();

# Filter data for Caribbean countries and the year 2020
caribbean_countries = ['ABW', 'BHS', 'BRB', 'DOM']
data_2020_caribbean = economies[(economies['year'] == 2020) & (economies['code'].isin(caribbean_countries))]

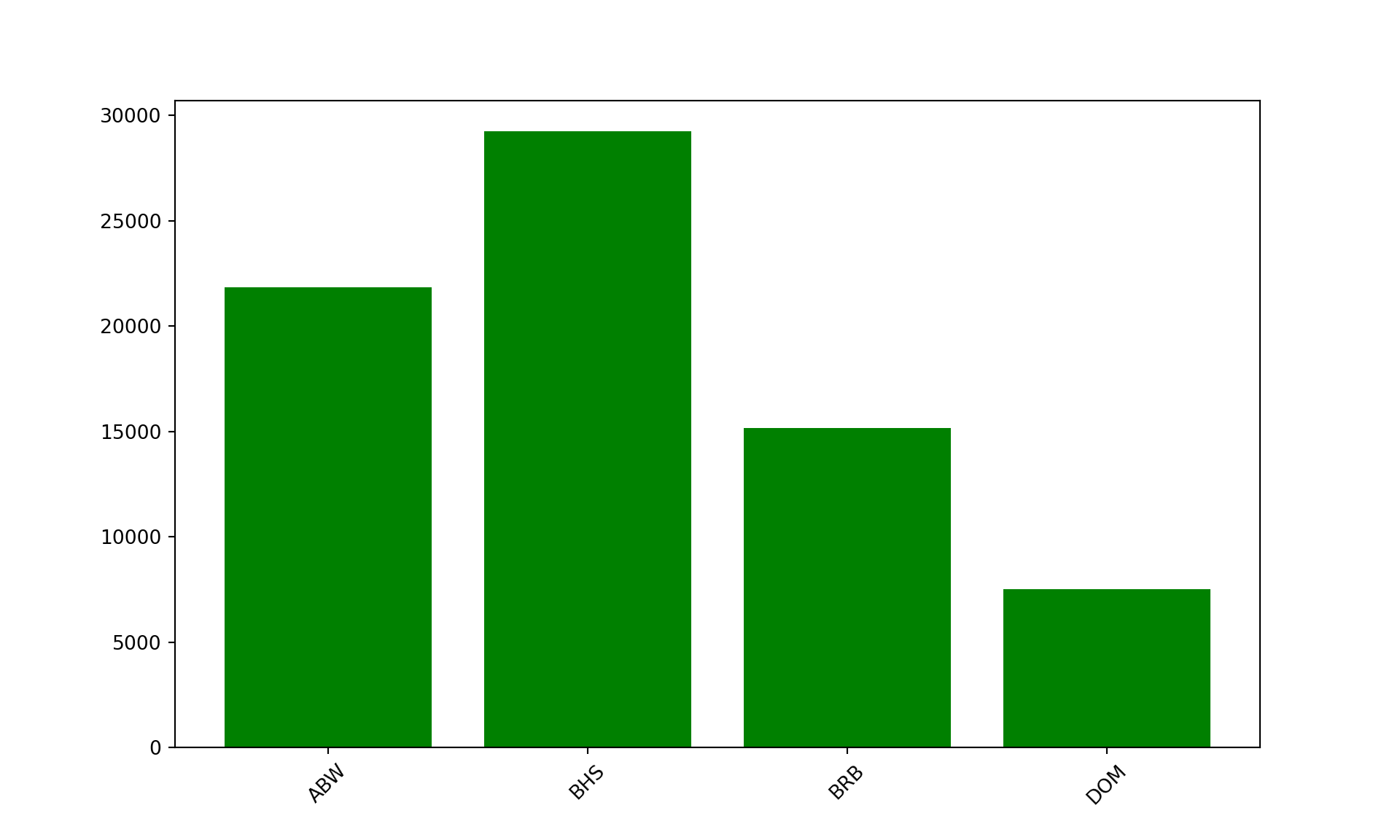

# Bar chart of gdp_percapita for different Caribbean countries in 2020
plt.figure(figsize=(10, 6))
plt.bar(data_2020_caribbean['code'], data_2020_caribbean['gdp_percapita'], color='g')
plt.xticks(rotation=45)
plt.show();

# Filter data for a specific country
liberia_data = economies[economies['code'] == 'LBR']

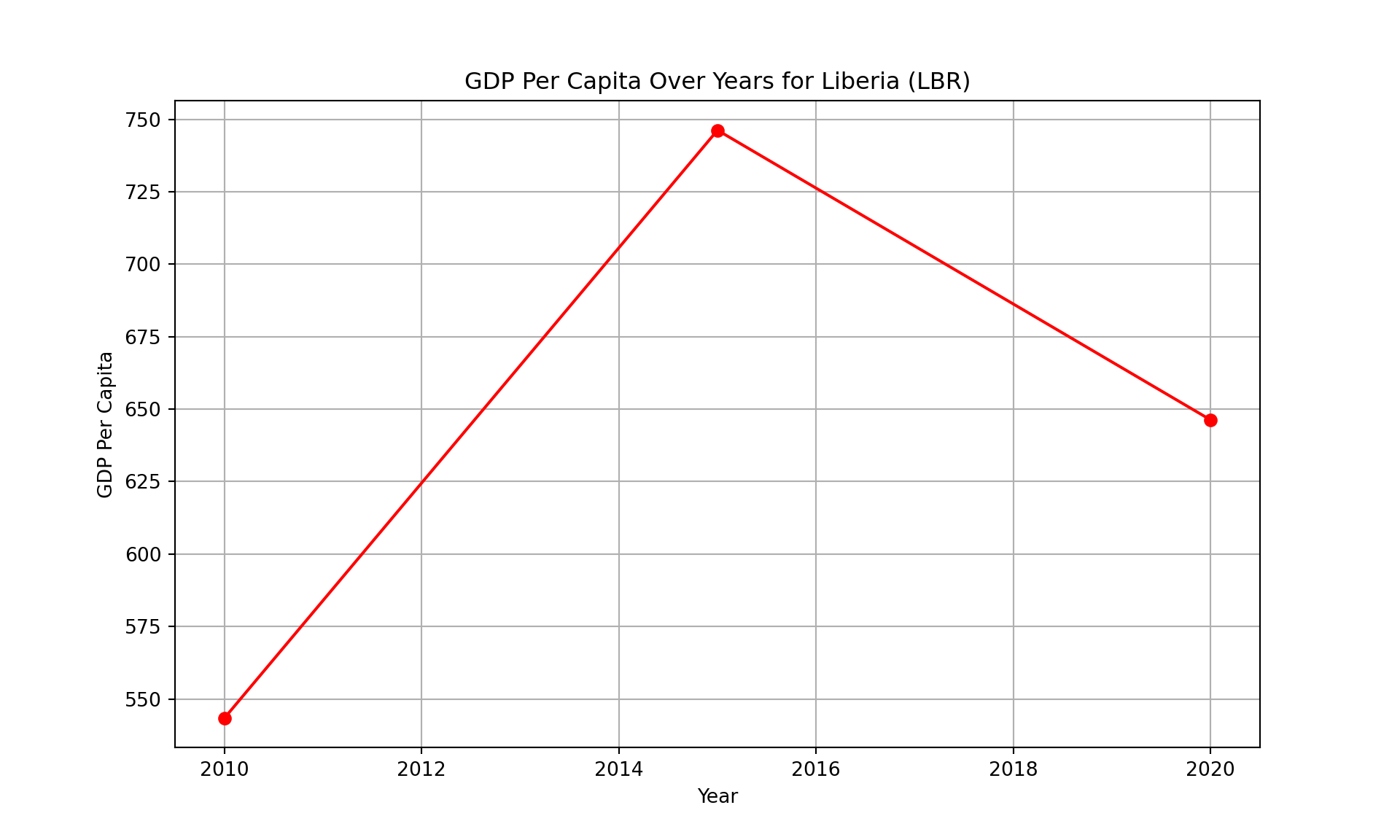

# Line plot of gdp_percapita over the years with labels and titles
plt.figure(figsize=(10, 6))
plt.plot(liberia_data['year'], liberia_data['gdp_percapita'], marker='o', linestyle='-', color='r')
plt.xlabel('Year')
plt.ylabel('GDP Per Capita')
plt.title('GDP Per Capita Over Years for Liberia (LBR)')
plt.grid(True)
plt.show();

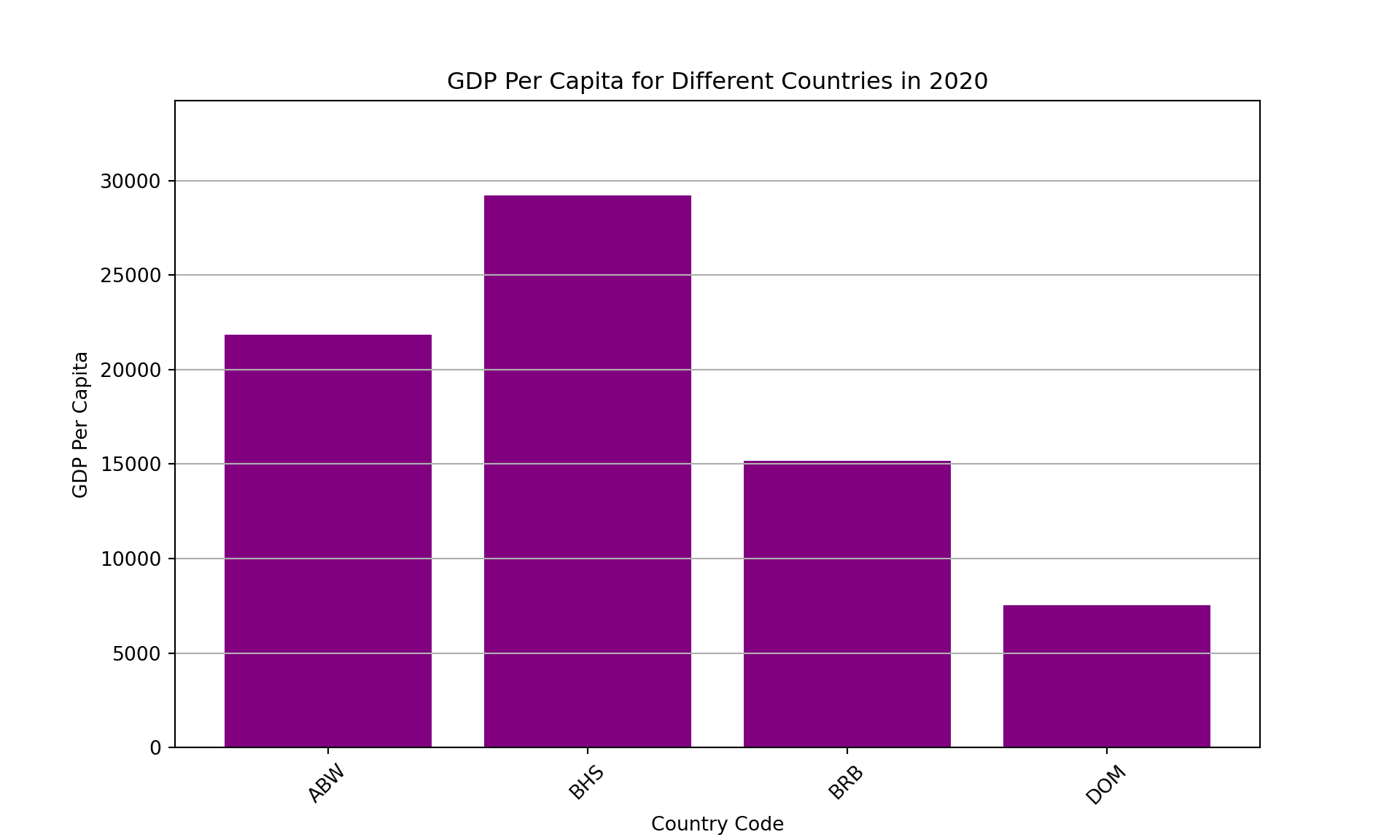

# Bar chart of gdp_percapita for different Caribbean countries in 2020 with
# adjusted axes and tick marks
plt.figure(figsize=(10, 6))
plt.bar(data_2020_caribbean['code'], data_2020_caribbean['gdp_percapita'], color='purple')
plt.xlabel('Country Code')
plt.ylabel('GDP Per Capita')
plt.title('GDP Per Capita for Different Countries in 2020')

# Adjust axes
plt.ylim(0, max(data_2020_caribbean['gdp_percapita']) + 5000)

# Adjust tick marks
plt.xticks(rotation=45)
plt.yticks(range(0, int(max(data_2020_caribbean['gdp_percapita']) + 5000), 5000))

plt.grid(axis='y')
plt.show();

import matplotlib.pyplot as plt

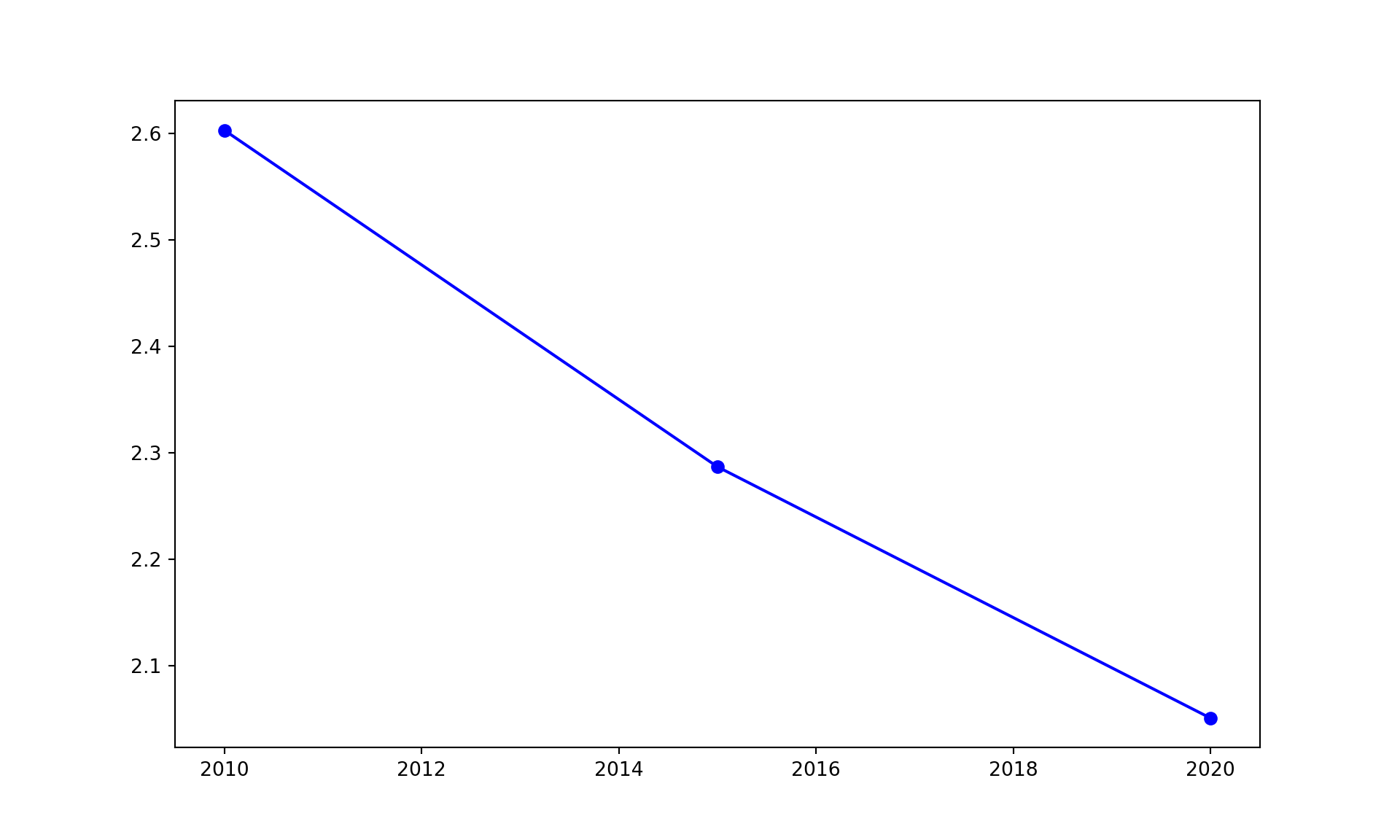

# Filter data for India
india_data = populations[populations['country_code'] == 'IND']

# Line plot of fertility rate over the years
plt.figure(figsize=(10, 6))
plt.plot(india_data['year'], india_data['fertility_rate'], marker='o', linestyle='-', color='b')
plt.show();

import plotly.graph_objects as go
import plotly.io as pio


fig = go.Figure(data=go.Bar(y=[2, 3, 1]))
fig.show()

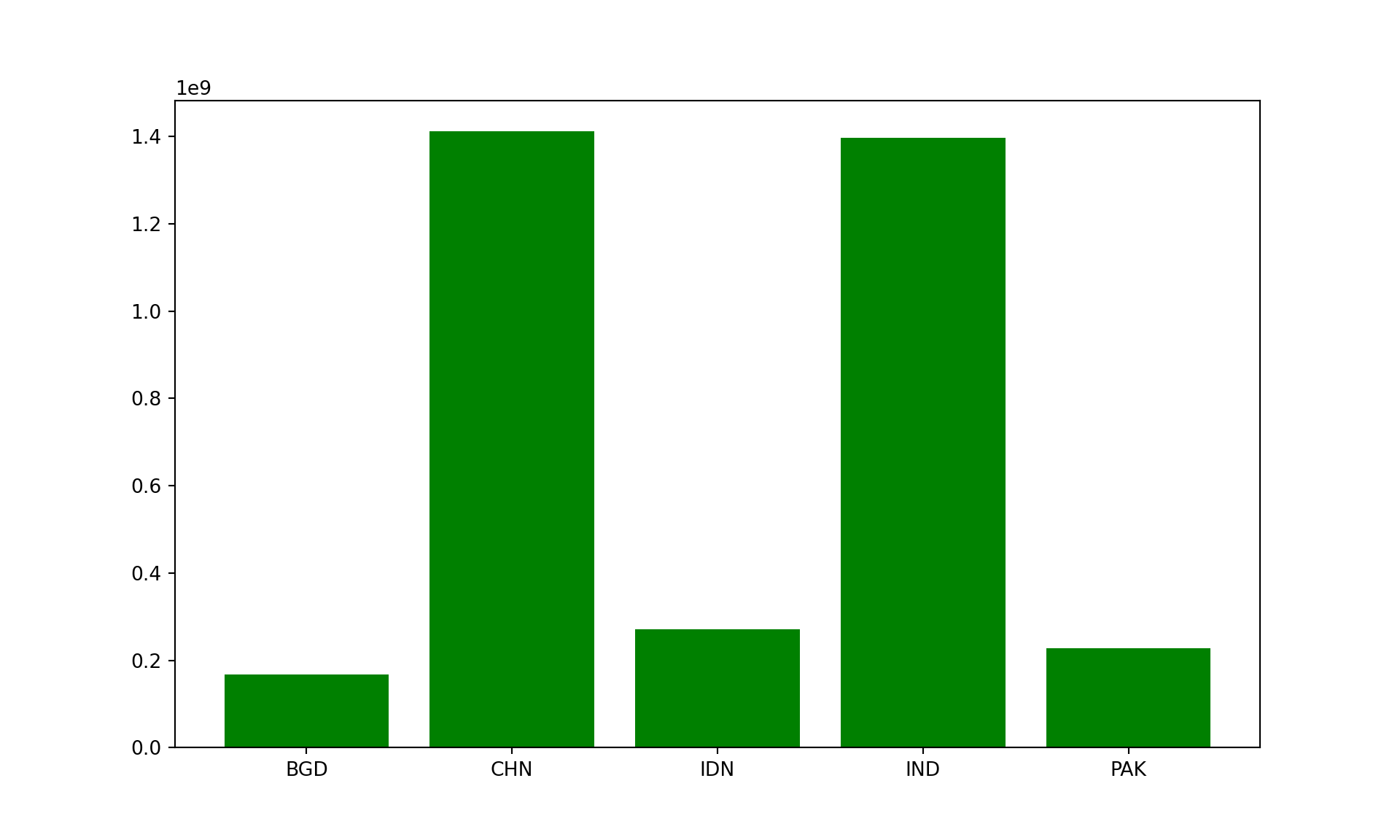

# Filter data for selected Asian countries and the year 2020
asian_countries = ['CHN', 'IND', 'IDN', 'PAK', 'BGD']
data_2020_asia = populations[(populations['year'] == 2020) & (populations['country_code'].isin(asian_countries))]

# Bar chart of population size for selected Asian countries in 2020
plt.figure(figsize=(10, 6))
plt.bar(data_2020_asia['country_code'], data_2020_asia['size'], color='g')
plt.show();

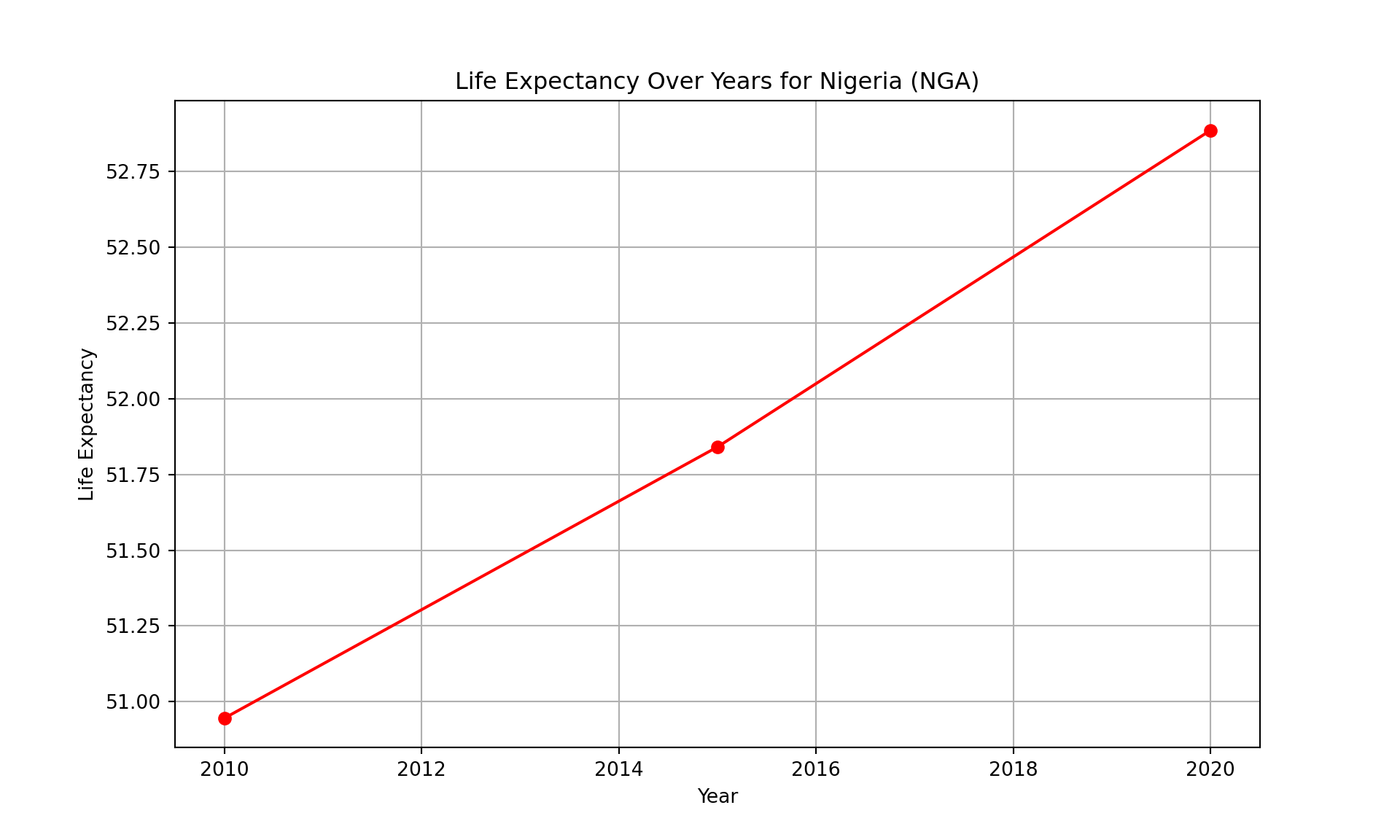

# Filter data for Nigeria
nigeria_data = populations[populations['country_code'] == 'NGA']

# Line plot of life expectancy over the years with labels and titles
plt.figure(figsize=(10, 6))
plt.plot(nigeria_data['year'], nigeria_data['life_expectancy'],
         marker='o', linestyle='-', color='r')
plt.xlabel('Year')
plt.ylabel('Life Expectancy')
plt.title('Life Expectancy Over Years for Nigeria (NGA)')
plt.grid(True)
plt.show();

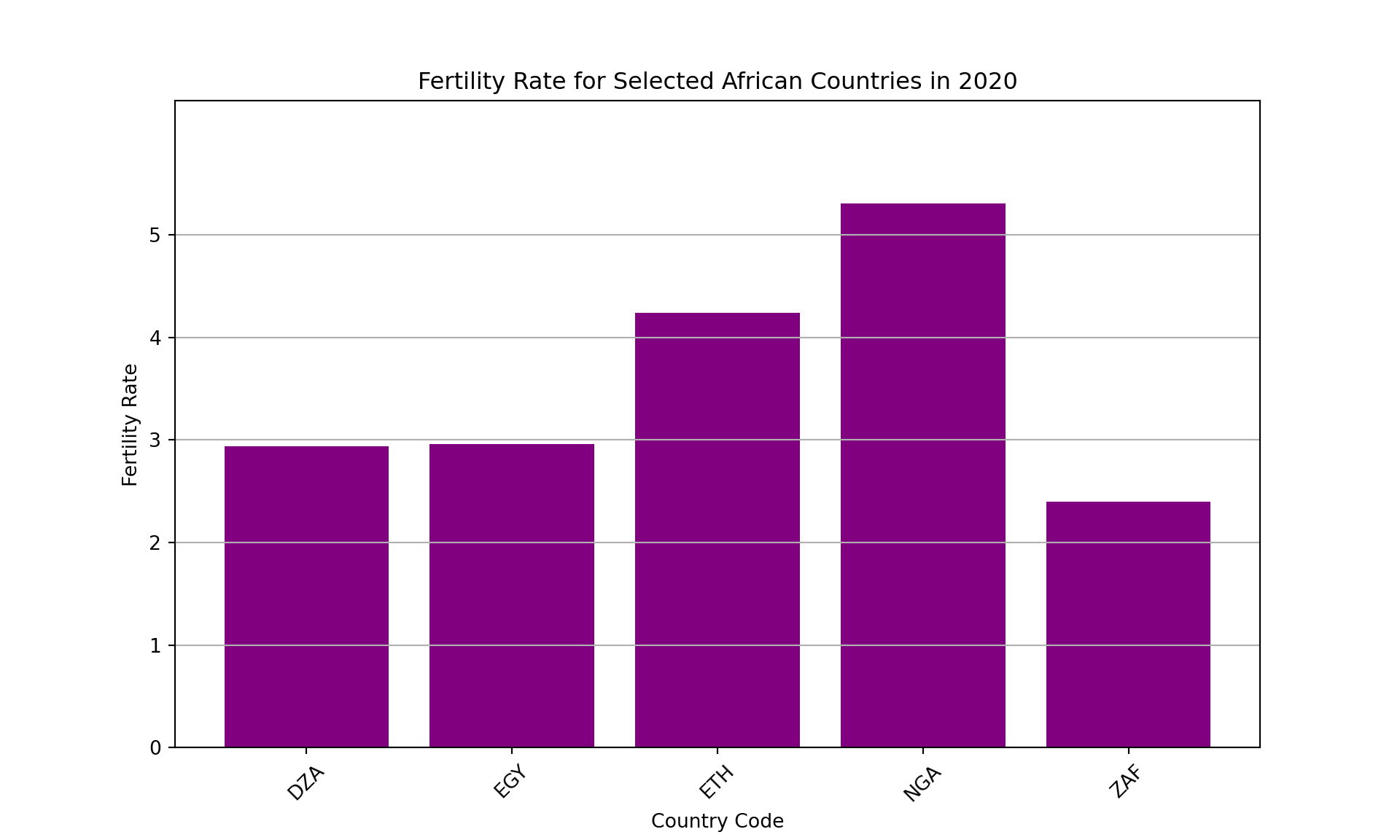

# Filter data for selected African countries ('NGA', 'ETH', 'EGY', 'ZAF', 'DZA')
# and the year 2020
african_countries = ['NGA', 'ETH', 'EGY', 'ZAF', 'DZA']

# Need to convert year back to an integer?
populations['year'] = populations['year'].astype(int)

data_2020_africa = populations[(populations['year'] == 2020) & (populations['country_code'].isin(african_countries))]

# Bar chart of fertility rate for selected African countries in 2020 with
# adjusted axes and tick marks
plt.figure(figsize=(10, 6))
plt.bar(data_2020_africa['country_code'], data_2020_africa['fertility_rate'], color='purple')
plt.xlabel('Country Code')
plt.ylabel('Fertility Rate')
plt.title('Fertility Rate for Selected African Countries in 2020')

# Adjust axes
plt.ylim(0, max(data_2020_africa['fertility_rate']) + 1)

# Adjust tick marks
plt.xticks(rotation=45)
plt.yticks(range(0, int(max(data_2020_africa['fertility_rate']) + 1), 1))

plt.grid(axis='y')
plt.show();

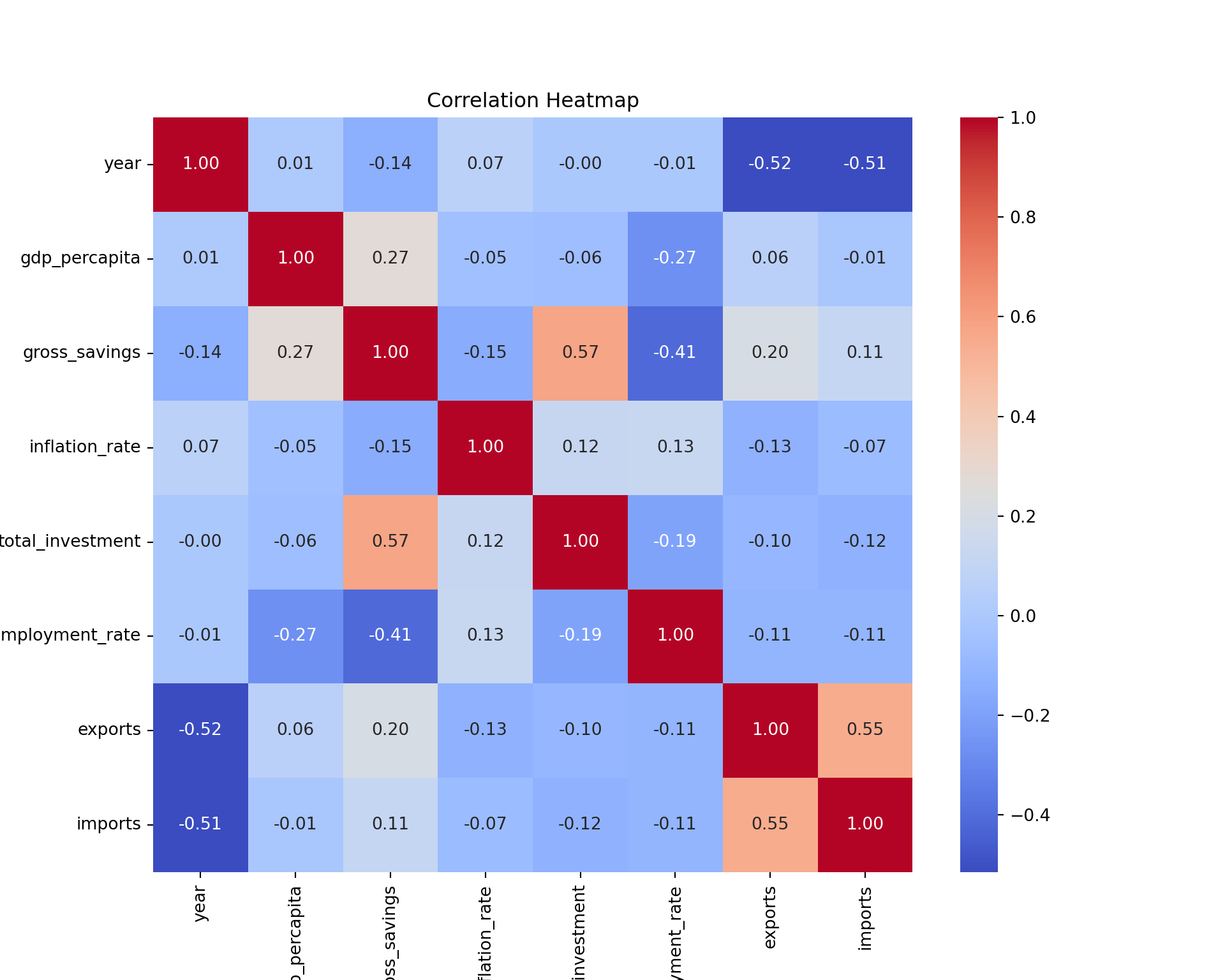

# Select only the numeric columns
numeric_cols = economies.select_dtypes(include=['float64', 'int64']).columns
numeric_economies = economies[numeric_cols]

# Calculate correlation matrix
corr_matrix = numeric_economies.corr()

# Create heatmap
plt.figure(figsize=(10, 8))
sns.heatmap(corr_matrix, annot=True, cmap='coolwarm', fmt='.2f')
plt.title('Correlation Heatmap')
plt.show();

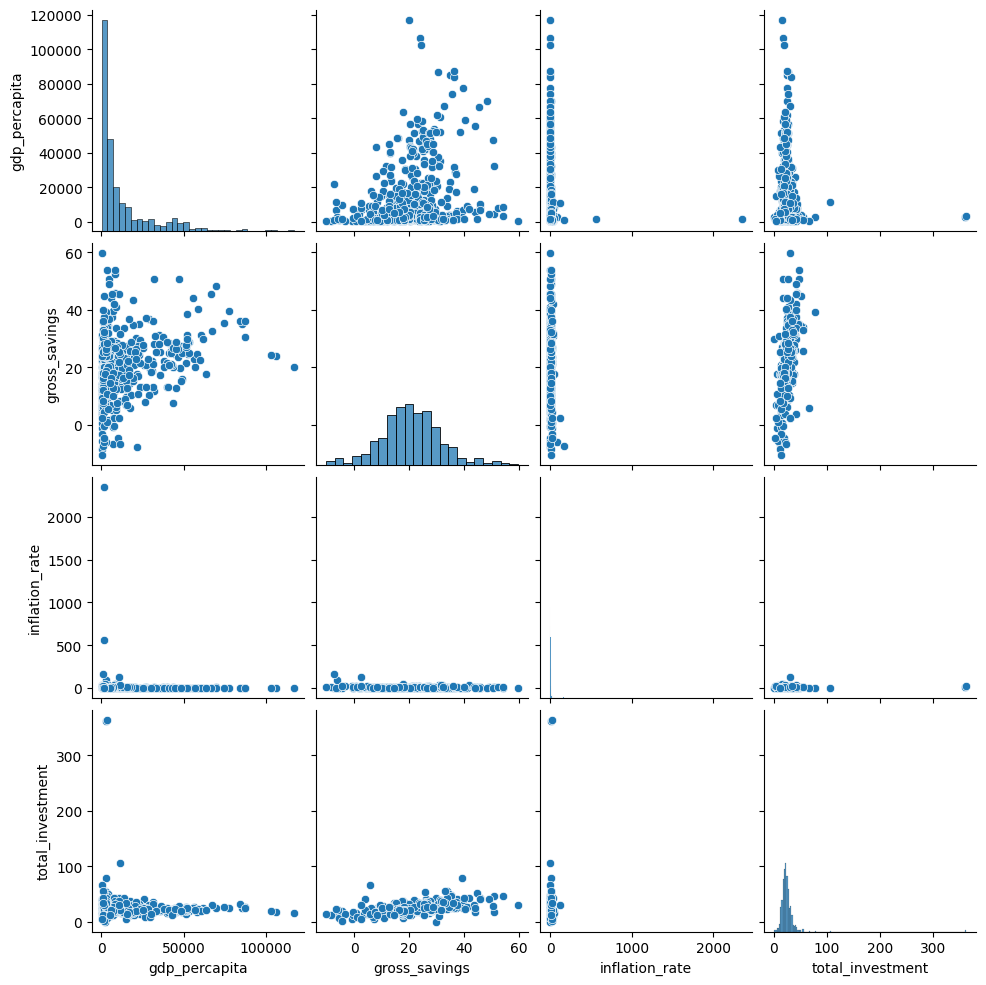

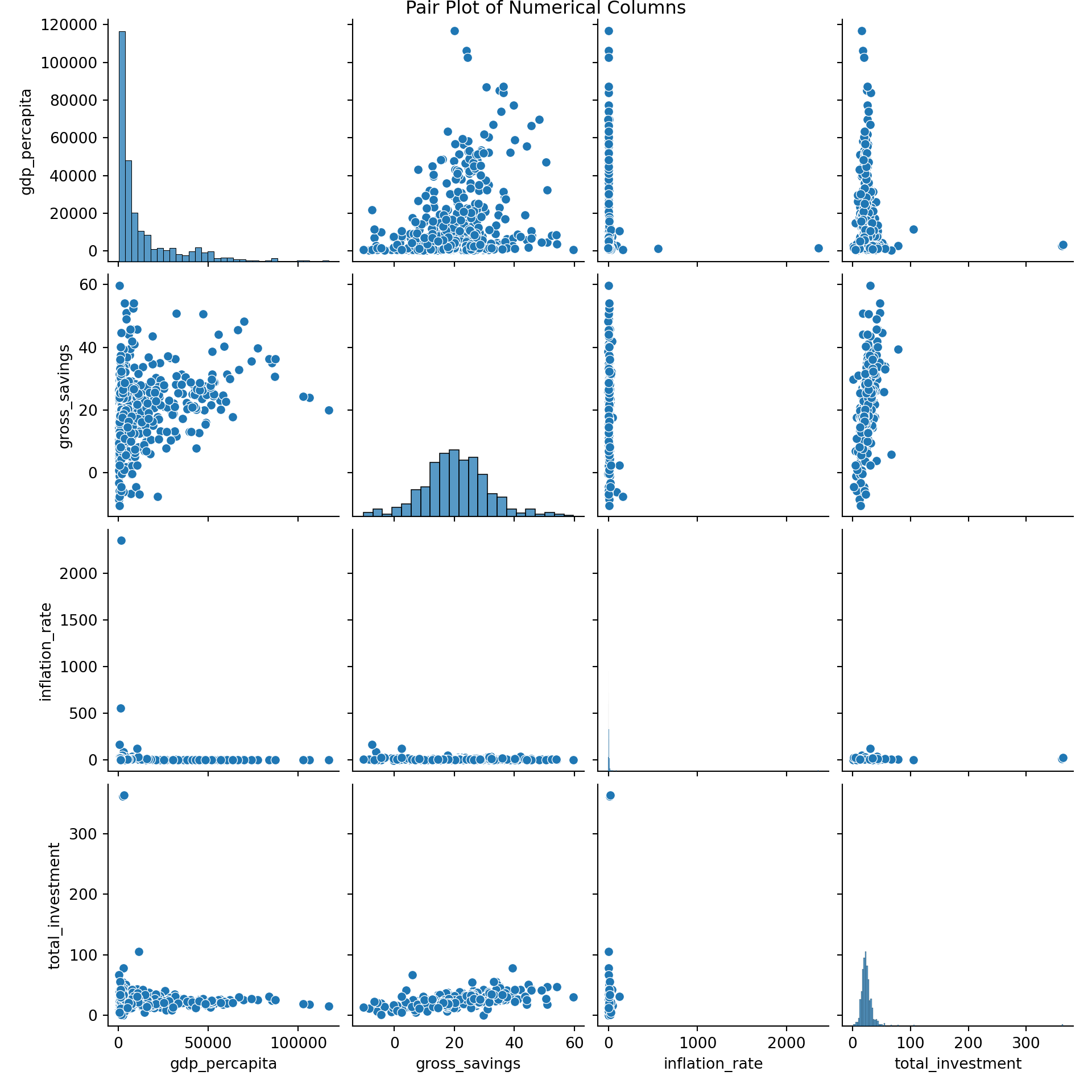

sns.pairplot(economies, vars=['gdp_percapita', 'gross_savings', 'inflation_rate', 'total_investment'])
plt.suptitle('Pair Plot of Numerical Columns', y=1)
plt.show();

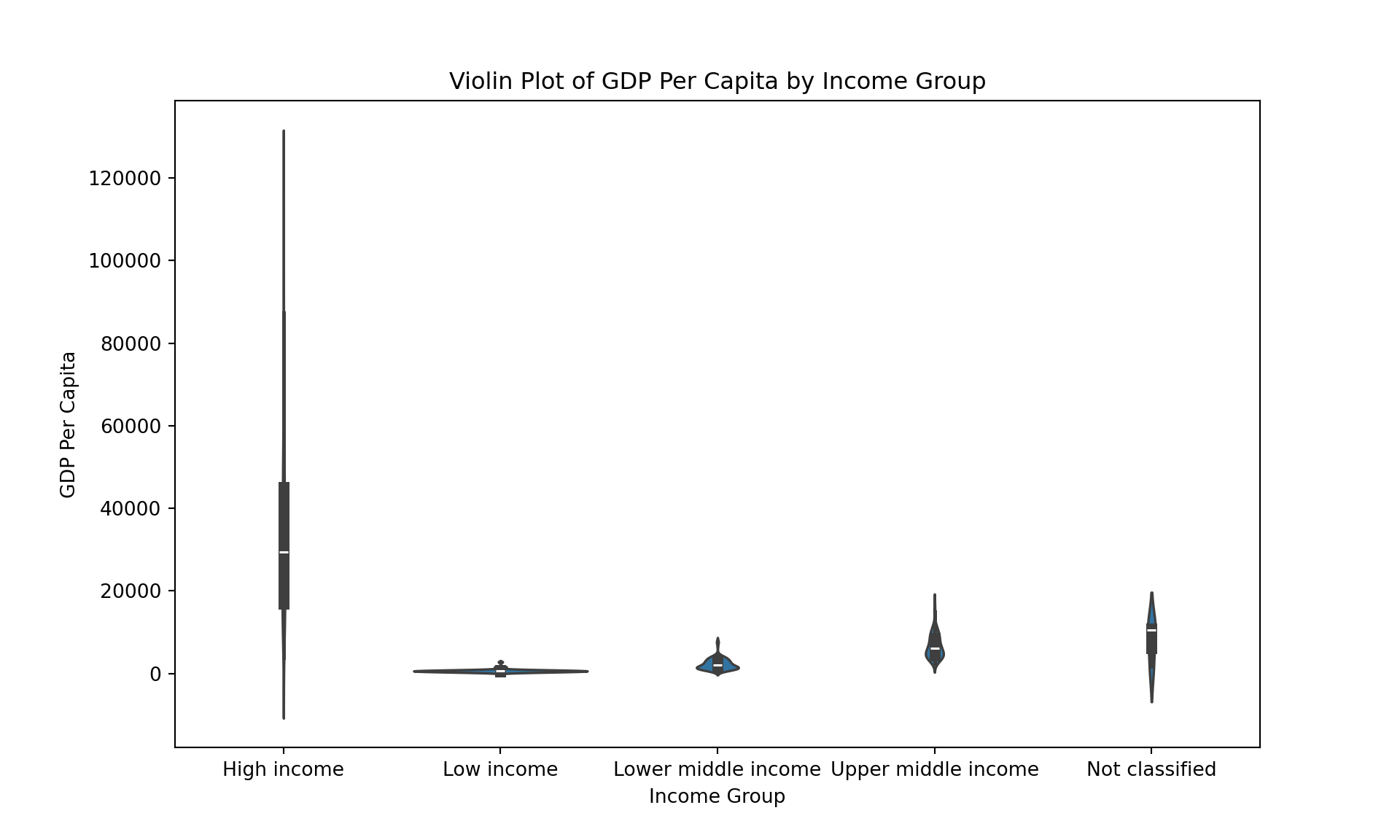

plt.figure(figsize=(10, 6))
sns.violinplot(x='income_group', y='gdp_percapita', data=economies)
plt.xlabel('Income Group')
plt.ylabel('GDP Per Capita')
plt.title('Violin Plot of GDP Per Capita by Income Group')
plt.show();

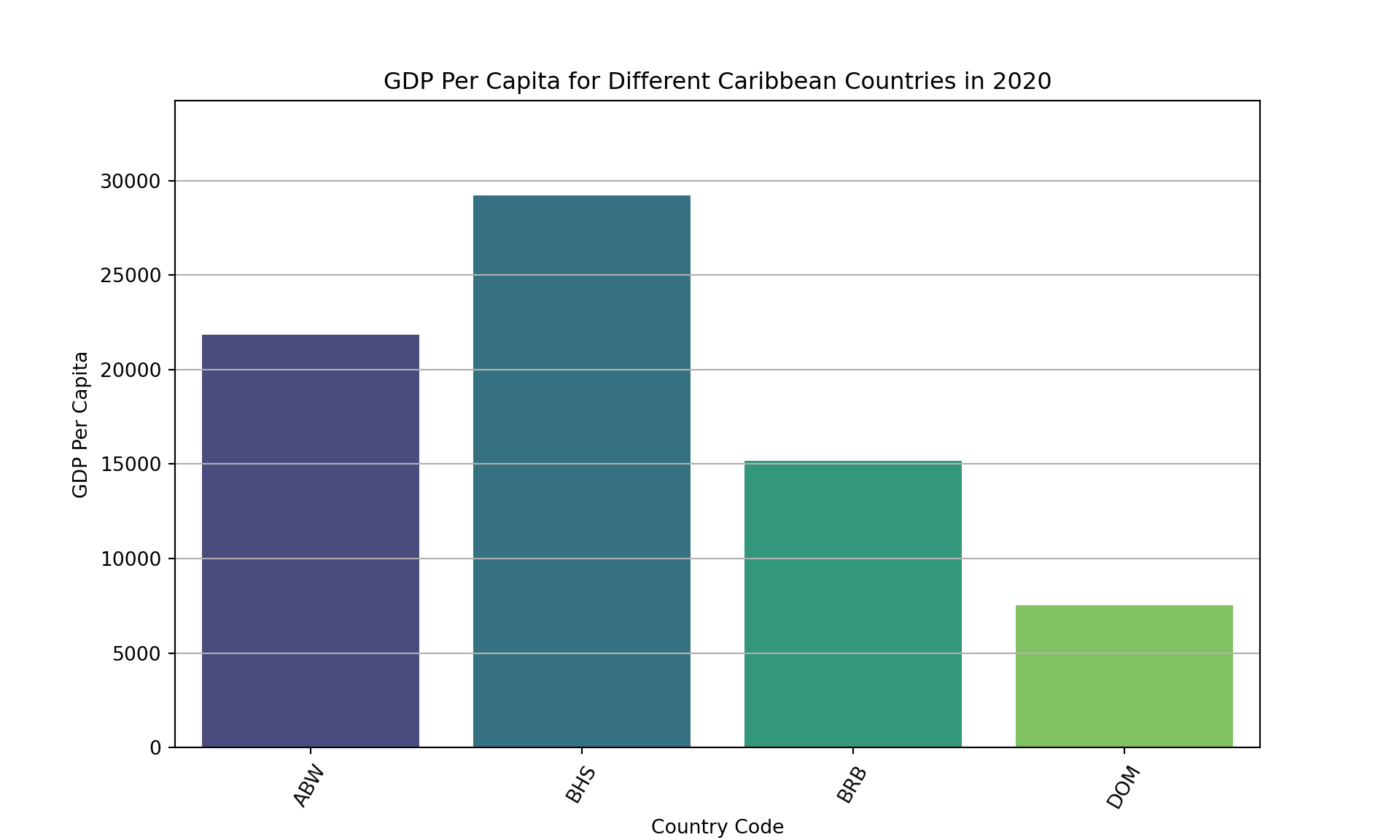

# Bar plot with customization
plt.figure(figsize=(10, 6))
sns.barplot(x='code', y='gdp_percapita', hue='code', data=data_2020_caribbean, palette='viridis')
plt.xlabel('Country Code')
plt.ylabel('GDP Per Capita')
plt.title('GDP Per Capita for Different Caribbean Countries in 2020')

# Customizing axes and tick marks
plt.ylim(0, max(data_2020_caribbean['gdp_percapita']) + 5000)
plt.xticks(rotation=60)
plt.yticks(range(0, int(max(data_2020_caribbean['gdp_percapita']) + 5000), 5000))

plt.grid(axis='y')
plt.show();

import seaborn as sns
import matplotlib.pyplot as plt

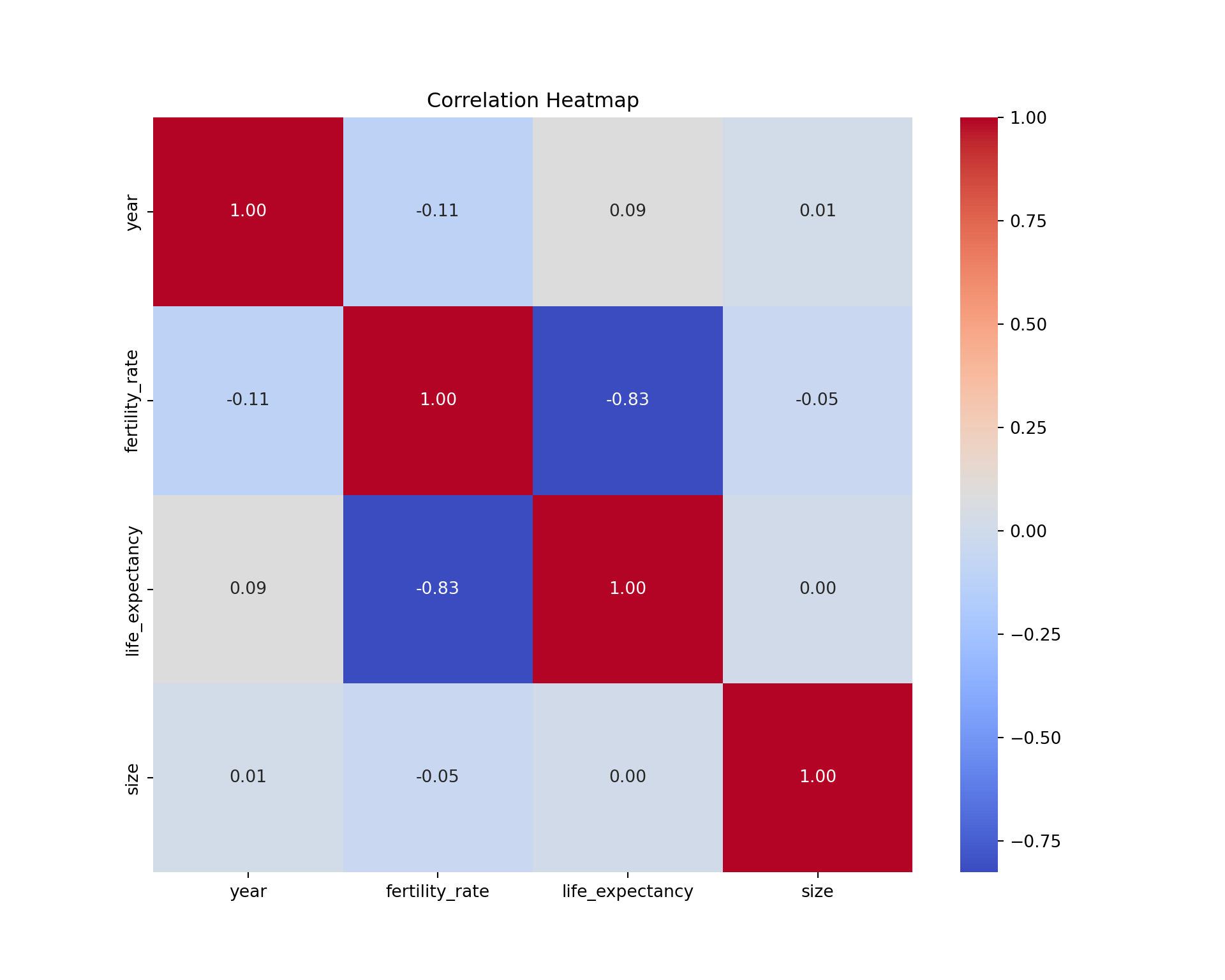

# Select only the numeric columns
numeric_cols = populations.select_dtypes(include=['float64', 'int64']).columns
numeric_populations = populations[numeric_cols]

# Calculate correlation matrix
pop_corr_matrix = numeric_populations.corr()

# Create heatmap
plt.figure(figsize=(10, 8))
sns.heatmap(pop_corr_matrix, annot=True, cmap='coolwarm', fmt='.2f')
plt.title('Correlation Heatmap')
plt.show();

import seaborn as sns
import matplotlib.pyplot as plt

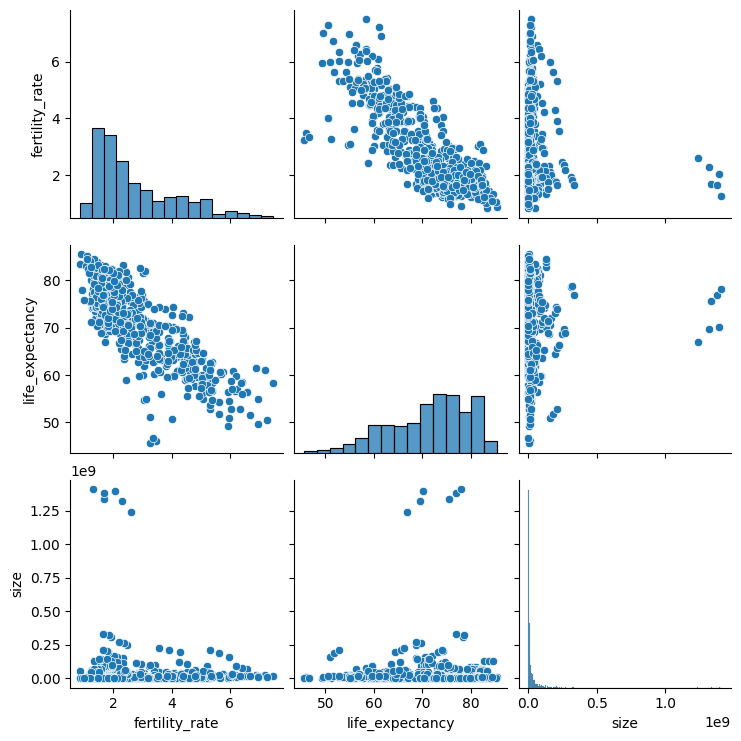

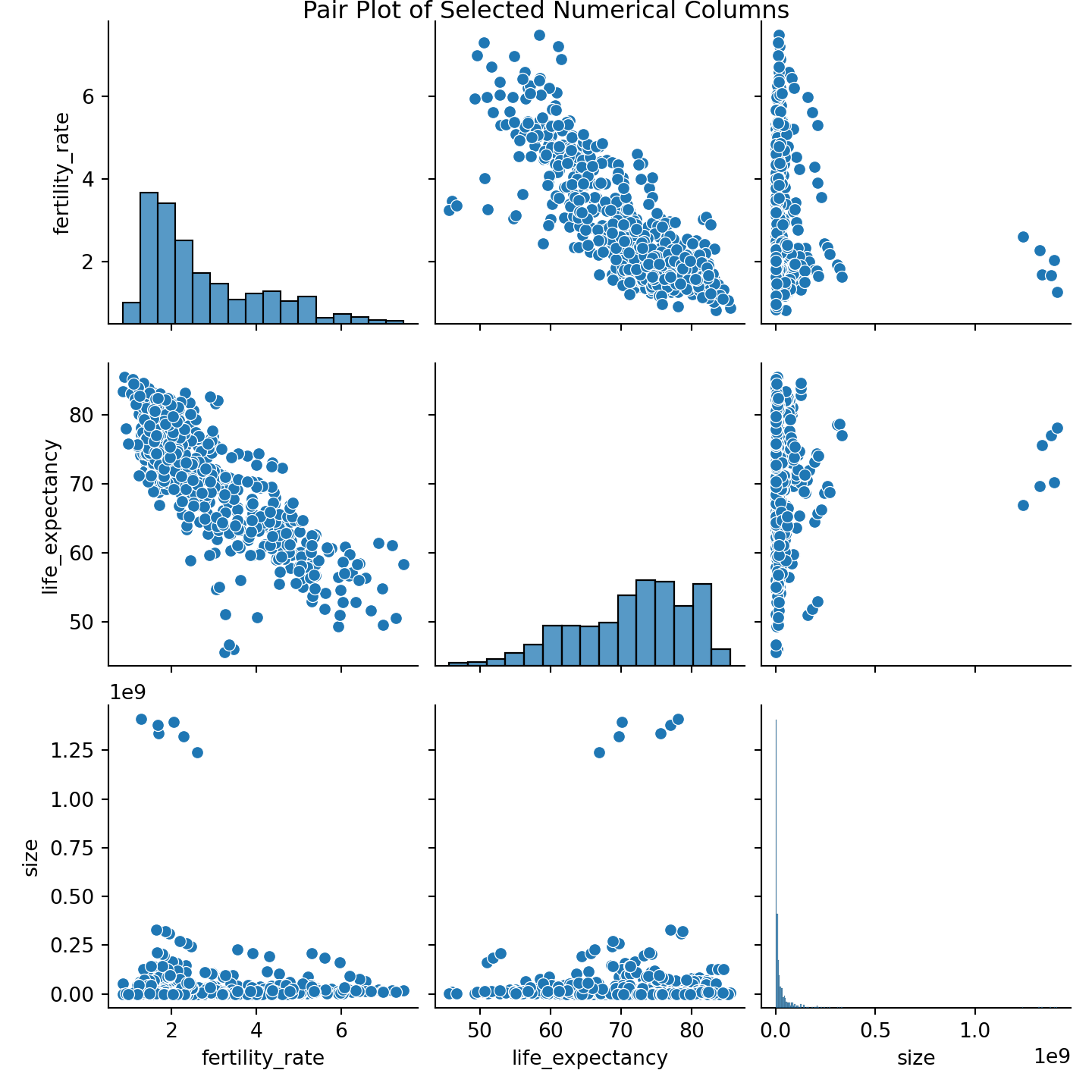

# Pair plot of fertility rate, life expectancy, and population size
sns.pairplot(populations, vars=['fertility_rate', 'life_expectancy', 'size'])
plt.suptitle('Pair Plot of Selected Numerical Columns', y=1)
plt.show();

import seaborn as sns
import matplotlib.pyplot as plt

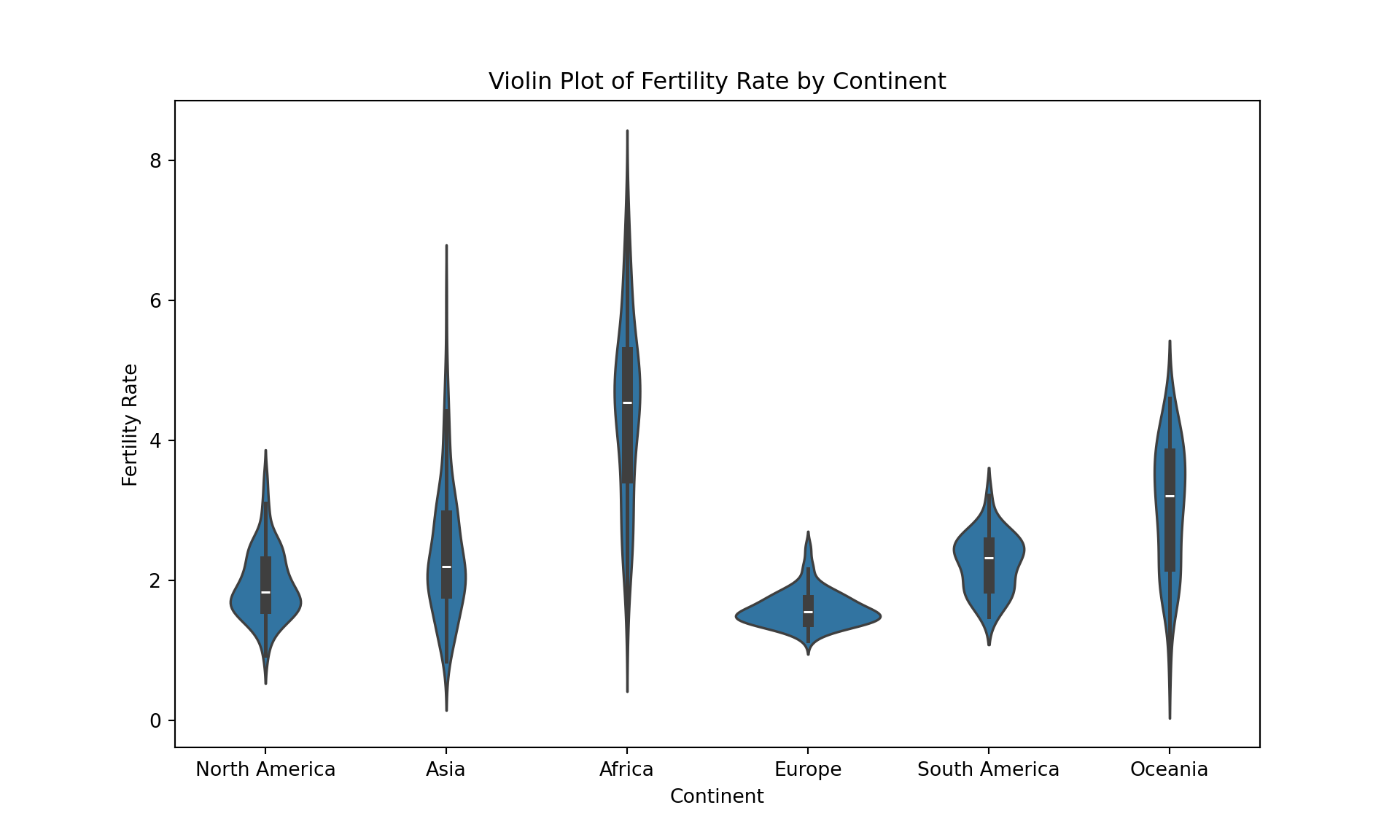

# Violin plot of fertility rate by continent
plt.figure(figsize=(10, 6))
sns.violinplot(x='continent', y='fertility_rate', data=populations)
plt.xlabel('Continent')
plt.ylabel('Fertility Rate')
plt.title('Violin Plot of Fertility Rate by Continent')
plt.show();

import seaborn as sns
import matplotlib.pyplot as plt

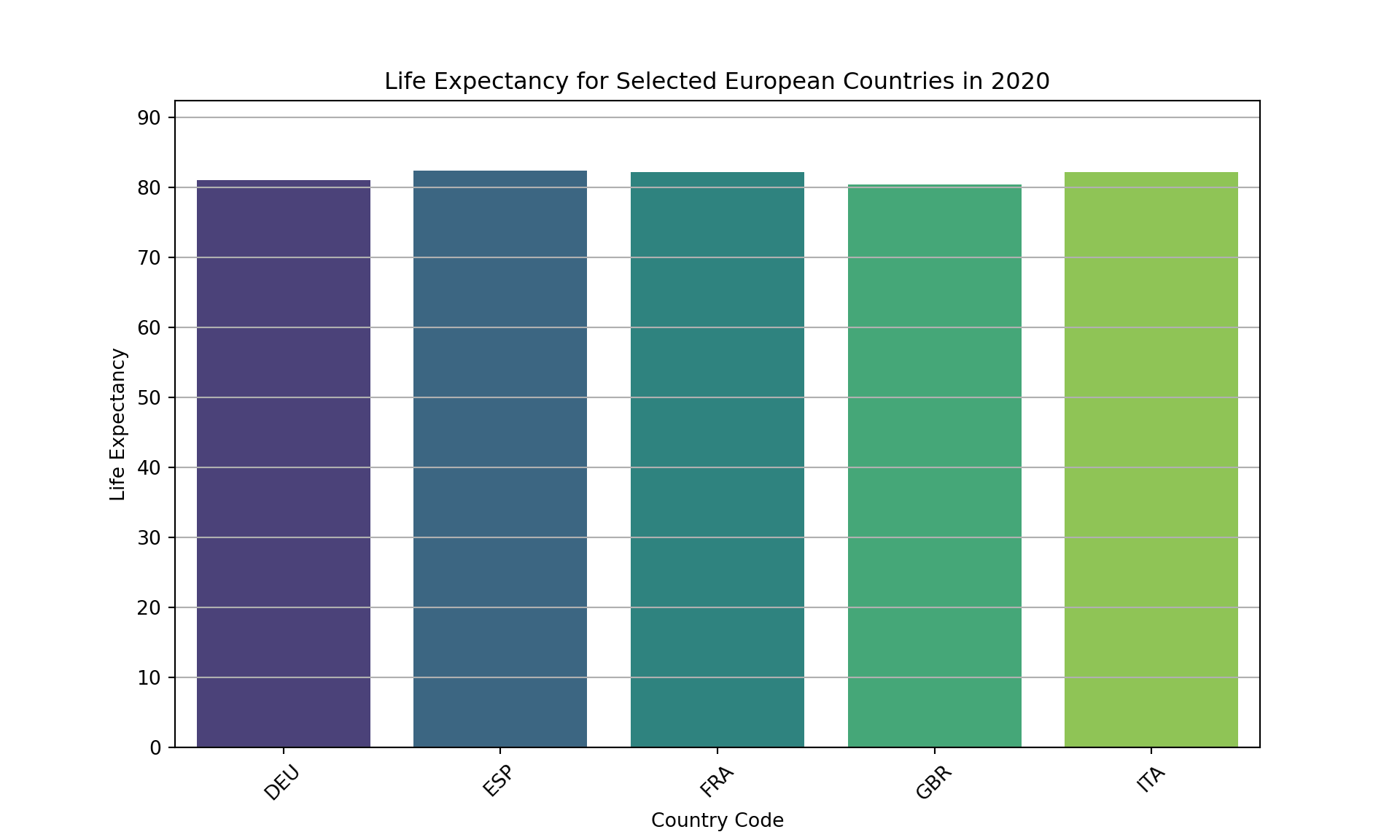

# Filter data for selected European countries ('DEU', 'FRA', 'ITA', 'ESP', 'GBR')
# and the year 2020
european_countries = ['DEU', 'FRA', 'ITA', 'ESP', 'GBR']
data_2020_europe = populations[(populations['year'] == 2020) & (populations['country_code'].isin(european_countries))]

# Bar plot with customization
plt.figure(figsize=(10, 6))
sns.barplot(x='country_code', y='life_expectancy', hue='country_code', data=data_2020_europe, palette='viridis')
plt.xlabel('Country Code')
plt.ylabel('Life Expectancy')
plt.title('Life Expectancy for Selected European Countries in 2020')

# Customizing axes and tick marks
plt.ylim(0, max(data_2020_europe['life_expectancy']) + 10)
plt.xticks(rotation=45)
plt.yticks(range(0, int(max(data_2020_europe['life_expectancy']) + 10), 10))

plt.grid(axis='y')
plt.show();

# Filter data for a specific country
afg_data = economies[economies['code'] == 'AFG']

# Create an interactive line chart
fig = px.line(afg_data, x='year', y='gdp_percapita', title='GDP Per Capita Over Years for Afghanistan (AFG)')
fig.show();

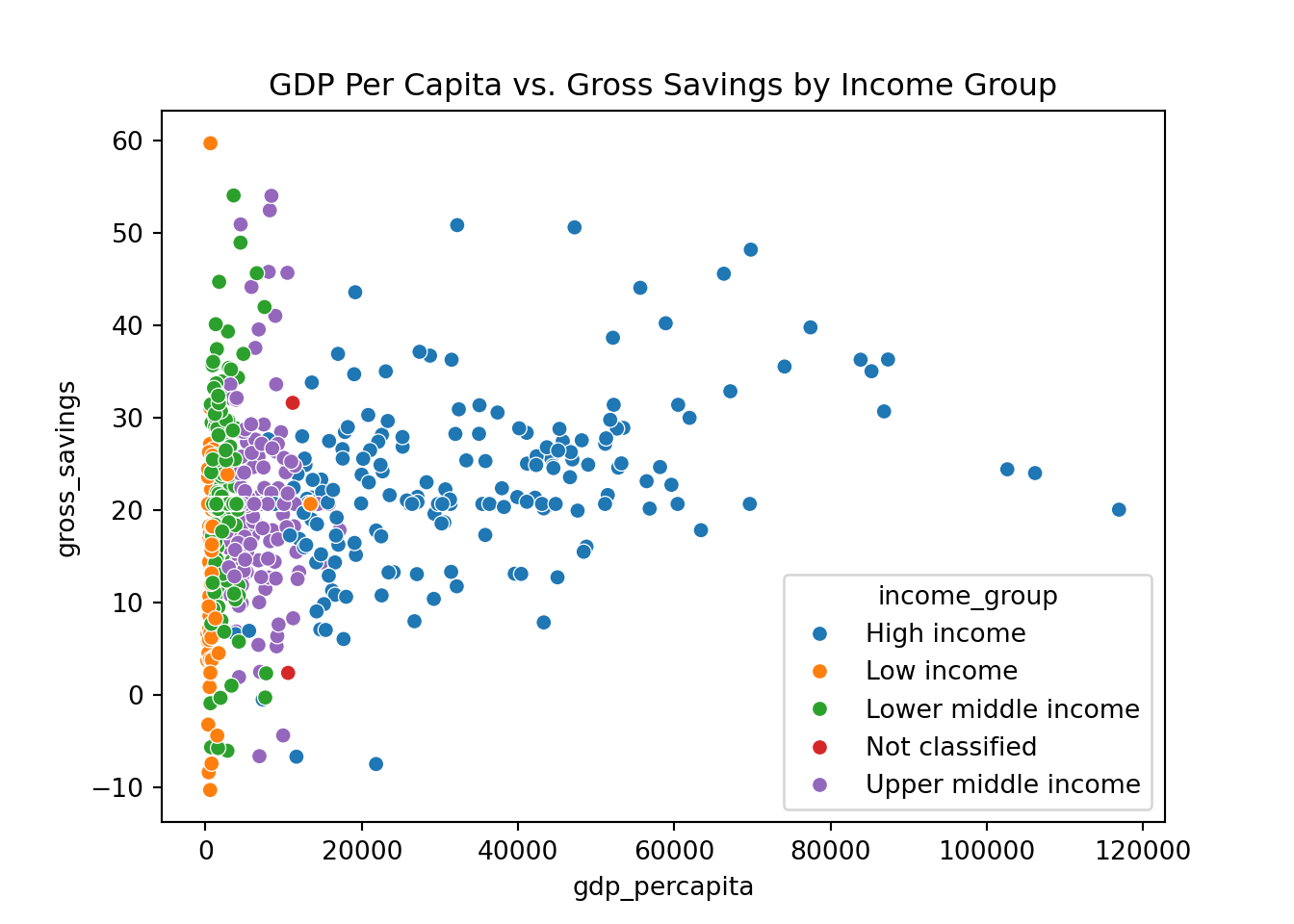

# Create an interactive scatter plot
fig = px.scatter(economies, x='gdp_percapita', y='gross_savings', color='income_group',
                 hover_name='code', title='GDP Per Capita vs. Gross Savings',
                 labels={'gdp_percapita': 'GDP Per Capita', 'gross_savings': 'Gross Savings (%)'})

# Add hover, zoom, and selection tools
fig.update_traces(marker=dict(size=10), selector=dict(mode='markers'))
fig.update_layout(hovermode='closest')

fig.show();

import plotly.graph_objects as go
from plotly.subplots import make_subplots

# Filter data for the year 2020
data_2020 = economies[economies['year'] == 2020]

# Create a subplot figure with 1 row and 2 columns
fig = make_subplots(rows=1, cols=2,
                    subplot_titles=('GDP Per Capita Over Years for Afghanistan',
                                    'GDP Per Capita for Different Countries in 2020'))

# Line chart of GDP Per Capita for Afghanistan
afg_data = economies[economies['code'] == 'AFG']
line_chart = go.Scatter(x=afg_data['year'], y=afg_data['gdp_percapita'], mode='lines+markers', name='Afghanistan')
fig.add_trace(line_chart, row=1, col=1)

# Bar chart of GDP Per Capita for different countries in 2020
bar_chart = go.Bar(x=data_2020['code'], y=data_2020['gdp_percapita'], name='2020')
fig.add_trace(bar_chart, row=1, col=2)

# Update layout
fig.update_layout(title_text='Simple Dashboard with Multiple Charts', showlegend=False)
fig.show();

import plotly.express as px

# Filter data for a specific country (Brazil)
bra_data = populations[populations['country_code'] == 'BRA']

# Create an interactive line chart (Fertility Rate Over Years)
fig = px.line(bra_data, x='year', y='fertility_rate', title='Fertility Rate Over Years for Brazil (BRA)')
fig.show();

import plotly.express as px

# Create an interactive scatter plot
fig = px.scatter(populations, x='fertility_rate', y='life_expectancy', color='continent',
                 hover_name='country', title='Fertility Rate vs. Life Expectancy',
                 labels={'fertility_rate': 'Fertility Rate', 'life_expectancy': 'Life Expectancy'})

# Add hover, zoom, and selection tools
fig.update_traces(marker=dict(size=10), selector=dict(mode='markers'))
fig.update_layout(hovermode='closest')

fig.show();

import plotly.graph_objects as go
from plotly.subplots import make_subplots

# Filter data for the year 2020
data_2020 = populations[populations['year'] == 2020]

# Create a subplot figure with 1 row and 2 columns
fig = make_subplots(rows=1, cols=2, subplot_titles=('Life Expectancy Over Years for Brazil', 'Life Expectancy for Different Countries in 2020'))

# Line chart of Life Expectancy for Brazil
bra_data = populations[populations['country_code'] == 'BRA']
line_chart = go.Scatter(x=bra_data['year'], y=bra_data['life_expectancy'], mode='lines+markers', name='Brazil')
fig.add_trace(line_chart, row=1, col=1)

# Bar chart of Life Expectancy for South American countries in 2020
south_american_data_2020 = data_2020[data_2020['continent'] == 'South America']
bar_chart = go.Bar(x=south_american_data_2020['country'], y=south_american_data_2020['life_expectancy'], name='2020')
fig.add_trace(bar_chart, row=1, col=2)

# Update layout to add a title and hide the legend
fig.update_layout(title_text='Simple Dashboard with Multiple Charts', showlegend=False)
fig.show();

# Select relevant data for the year 2020 and specific columns
selected_data = economies[economies['year'] == 2020][['code', 'gdp_percapita', 'gross_savings', 'inflation_rate', 'income_group']]
selected_data.head()

import plotly.express as px
import plotly.graph_objects as go
from plotly.subplots import make_subplots

# Create a subplot figure with 3 rows
fig = make_subplots(rows=3, cols=1,
                    subplot_titles=('GDP Per Capita vs. Gross Savings',
                                    'GDP Per Capita by Country and Income Group',
                                    'Gross Savings by Country and Income Group'))

# Add scatter plot
fig.add_trace(go.Scatter(x=selected_data['gdp_percapita'], y=selected_data['gross_savings'],
                         mode='markers',
                         marker=dict(color=selected_data['income_group'].astype('category').cat.codes),
                         text=selected_data['code'], name='Scatter'),
              row=1, col=1)

# Add bar chart
fig.add_trace(go.Bar(x=selected_data['code'], y=selected_data['gdp_percapita'],
                     marker=dict(color=selected_data['income_group'].astype('category').cat.codes), name='Bar'),
              row=2, col=1)

# Add another scatter plot
fig.add_trace(go.Scatter(x=selected_data['code'], y=selected_data['gross_savings'],
                         mode='markers',
                         marker=dict(color=selected_data['income_group'].astype('category').cat.codes), text=selected_data['code'], name='Scatter'),
              row=3, col=1)

# Update layout
fig.update_layout(title_text='Dynamic Data Report for Economic Indicators (2020)', showlegend=False, height=900)

fig.show();

import plotly.io as pio
import plotly.graph_objects as go

# Create a subplot figure with 3 rows
fig = make_subplots(rows=3, cols=1,
                    subplot_titles=('GDP Per Capita vs. Gross Savings',
                                    'GDP Per Capita by Country and Income Group',
                                    'Gross Savings by Country and Income Group'))

# Add scatter plot
fig.add_trace(go.Scatter(x=selected_data['gdp_percapita'], y=selected_data['gross_savings'],
                         mode='markers',
                         marker=dict(color=selected_data['income_group'].astype('category').cat.codes),
                         text=selected_data['code'], name='Scatter'),
              row=1, col=1)

# Add bar chart
fig.add_trace(go.Bar(x=selected_data['code'], y=selected_data['gdp_percapita'],
                     marker=dict(color=selected_data['income_group'].astype('category').cat.codes), name='Bar'),
              row=2, col=1)

# Add another scatter plot
fig.add_trace(go.Scatter(x=selected_data['code'], y=selected_data['gross_savings'],
                         mode='markers',
                         marker=dict(color=selected_data['income_group'].astype('category').cat.codes),
                         text=selected_data['code'], name='Scatter'),
              row=3, col=1)

# Update layout
fig.update_layout(
    title_text='Dynamic Data Report for Economic Indicators (2020)',
    showlegend=False,
    height=900,
    annotations=[
        go.layout.Annotation(
            text='''This report presents key economic indicators for various countries in 2020, categorized by income group. ''',
            xref='paper', yref='paper', x=0.5, y=1, showarrow=False, font=dict(size=14)
        )
    ]
)

# Add summaries below each subplot
fig.add_annotation(text='The scatter plot reveals a positive correlation between GDP per Capita and Gross Savings, especially for high-income countries.', xref='paper', yref='paper', x=0, y=0.75, showarrow=False, font=dict(size=12))
fig.add_annotation(text='The bar chart shows that high-income countries generally have higher GDP per Capita compared to low-income countries.', xref='paper', yref='paper', x=0, y=0.30, showarrow=False, font=dict(size=12))
fig.add_annotation(text='The scatter plot indicates no clear relationship between income group and gross savings.', xref='paper', yref='paper', x=0, y=-0.1, showarrow=False, font=dict(size=12))

fig.show();

# Select relevant data for the year 2020 and specific columns (country_code, fertility_rate, life_expectancy, continent)
pop_selected_data = populations[populations['year'] == 2020][['country_code', 'fertility_rate', 'life_expectancy', 'continent']]
pop_selected_data.head()

import plotly.express as px
import plotly.graph_objects as go
from plotly.subplots import make_subplots

# Create a subplot figure with 3 rows and subplot titles
fig = make_subplots(rows=3, cols=1,
                    subplot_titles=('Fertility Rate vs. Life Expectancy',
                                    'Fertility Rate by Country and Continent',
                                    'Life Expectancy by Country and Continent'))

# Adding a scatter plot trace to the figure
# - x-axis: 'fertility_rate' from the selected population data
# - y-axis: 'life_expectancy' from the selected population data
# - mode: 'markers' to display points
# - marker color: based on the 'continent' category codes, to differentiate points by continent
# - text: 'country_code' to show country codes on hover
# - name: 'Scatter' to label this trace
# The trace is added to the first row and first column of the subplot grid
fig.add_trace(go.Scatter(x=pop_selected_data['fertility_rate'], y=pop_selected_data['life_expectancy'],
                         mode='markers',
                         marker=dict(color=pop_selected_data['continent'].astype('category').cat.codes),
                         text=pop_selected_data['country_code'], name='Scatter'),
              row=1, col=1)

# Adding a bar chart trace to the figure
# - x-axis: 'country_code' from the selected population data
# - y-axis: 'fertility_rate' from the selected population data
# - marker color: based on the 'continent' category codes, to differentiate bars by continent
# - name: 'Bar' to label this trace
# The trace is added to the second row and first column of the subplot grid
fig.add_trace(go.Bar(x=pop_selected_data['country_code'], y=pop_selected_data['fertility_rate'],
                     marker=dict(color=pop_selected_data['continent'].astype('category').cat.codes), name='Bar'),
              row=2, col=1)

# Adding a scatter plot trace to the figure
# - x-axis: 'country_code' from the selected population data
# - y-axis: 'life_expectancy' from the selected population data
# - mode: 'markers' to display points
# - marker color: based on the 'continent' category codes, to differentiate points by continent
# - name: 'Scatter' to label this trace
# The trace is added to the third row and first column of the subplot grid
fig.add_trace(go.Scatter(x=pop_selected_data['country_code'], y=pop_selected_data['life_expectancy'],
                         mode='markers',
                         marker=dict(color=pop_selected_data['continent'].astype('category').cat.codes), name='Scatter'),
              row=3, col=1)

# Update layout to include title, hide legend, and set height to 900
fig.update_layout(title_text='Dynamic Data Report for Population Indicators (2020)', showlegend=False, height=900)

fig.show();

import plotly.express as px
import plotly.graph_objects as go
from plotly.subplots import make_subplots

# Create a subplot figure with 3 rows
fig = make_subplots(rows=3, cols=1,
                    subplot_titles=('Fertility Rate vs. Life Expectancy',
                                    'Fertility Rate by Country and Continent',
                                    'Life Expectancy by Country and Continent'))

# Add scatter plot
fig.add_trace(go.Scatter(x=pop_selected_data['fertility_rate'], y=pop_selected_data['life_expectancy'],
                         mode='markers',
                         marker=dict(color=pop_selected_data['continent'].astype('category').cat.codes),
                         text=pop_selected_data['country_code'], name='Scatter'),
              row=1, col=1)

# Add bar chart
fig.add_trace(go.Bar(x=pop_selected_data['country_code'], y=pop_selected_data['fertility_rate'],
                     marker=dict(color=pop_selected_data['continent'].astype('category').cat.codes), name='Bar'),
              row=2, col=1)

# Add another scatter plot
fig.add_trace(go.Scatter(x=pop_selected_data['country_code'], y=pop_selected_data['life_expectancy'],
                         mode='markers',
                         marker=dict(color=pop_selected_data['continent'].astype('category').cat.codes), name='Scatter'),
              row=3, col=1)


# Update layout
fig.update_layout(
    title_text='Dynamic Data Report for Population Indicators (2020)',
    showlegend=False,
    height=900,
    annotations=[
        go.layout.Annotation(
            text='''This report presents key population-based indicators for various countries in 2020, categorized by continent. ''',
            xref='paper', yref='paper', x=0.5, y=1, showarrow=False, font=dict(size=14)
        )
    ]
)

# Add summaries below each subplot
fig.add_annotation(text='A negative correlation between Fertility Rate and Life Expectancy.', xref='paper', yref='paper', x=0, y=0.75, showarrow=False, font=dict(size=12))
fig.add_annotation(text='Fertility rates vary significantly across countries, with African countries generally exhibiting higher fertility rates.', xref='paper', yref='paper', x=0, y=0.30, showarrow=False, font=dict(size=12))
fig.add_annotation(text='Life expectancy varies across countries and continents, with European tending to have higher life expectancies.', xref='paper', yref='paper', x=0, y=-0.1, showarrow=False, font=dict(size=12))

fig.show();

# Handle missing values
economies_cleaned = economies.fillna({
    'gdp_percapita': economies['gdp_percapita'].mean(),
    'gross_savings': economies['gross_savings'].mean(),
    'inflation_rate': economies['inflation_rate'].mean(),
    'total_investment': economies['total_investment'].mean(),
    'unemployment_rate': economies['unemployment_rate'].mean(),
    'exports': economies['exports'].mean(),
    'imports': economies['imports'].mean()
})

# Convert categorical variables to category type
economies_cleaned['income_group'] = economies_cleaned['income_group'].astype('category')
economies_cleaned

# Create new columns for analysis
economies_cleaned['gdp_growth'] = economies_cleaned.groupby('code')['gdp_percapita'].pct_change()
economies_cleaned

import seaborn as sns
import matplotlib.pyplot as plt

plt.clf()

# Analyze the relationship between GDP per capita and gross savings
sns.scatterplot(data=economies_cleaned, x='gdp_percapita', y='gross_savings', hue='income_group')
plt.title('GDP Per Capita vs. Gross Savings by Income Group')
plt.show()
plt.clf()

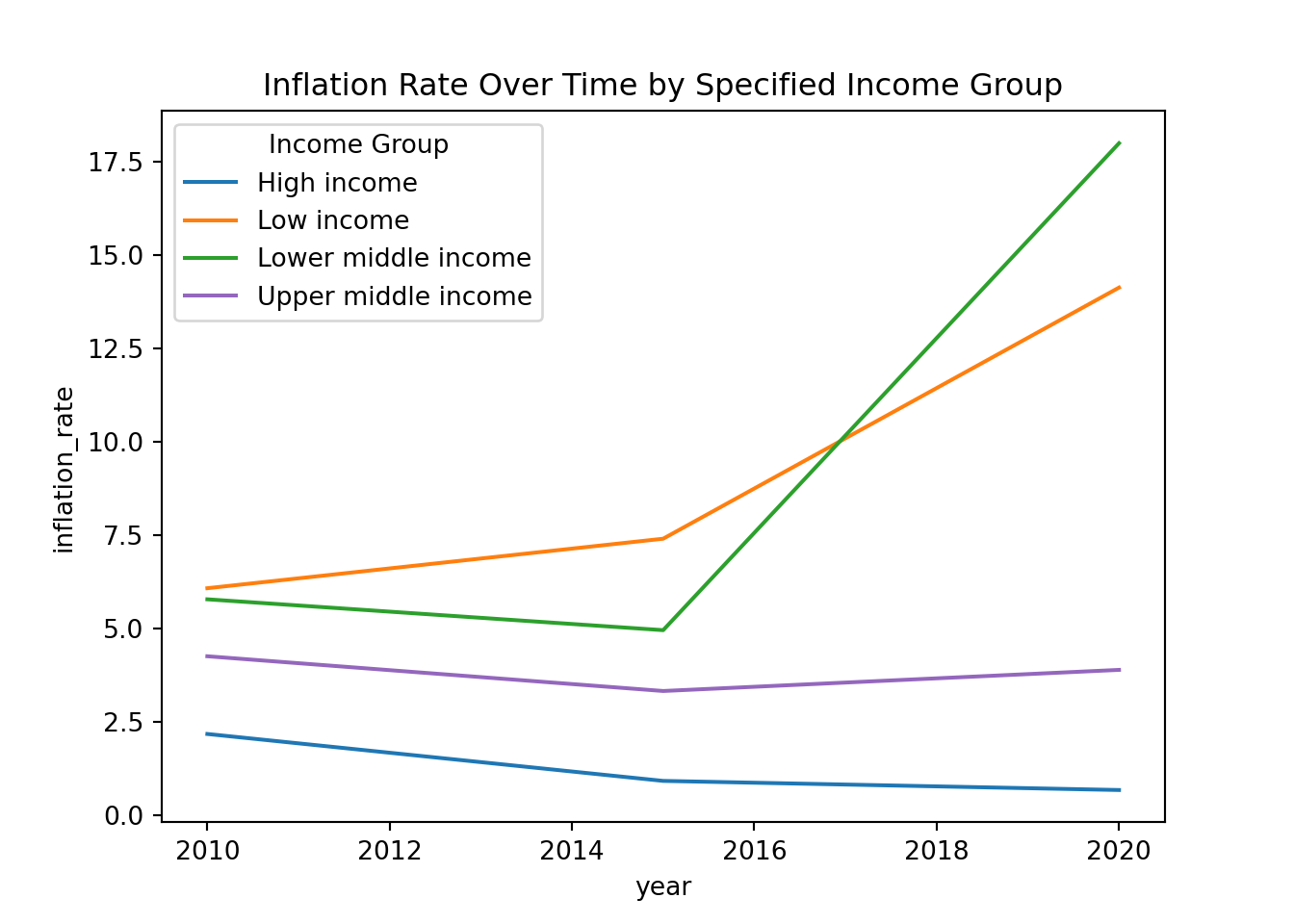

# Analyze the trend of inflation rate over time for all classified income groups
classified_data = economies_cleaned[economies_cleaned['income_group'] != 'Not classified']
sns.lineplot(data=classified_data, x='year', y='inflation_rate',
             hue='income_group', errorbar=None)
plt.title('Inflation Rate Over Time by Specified Income Group')
plt.legend(title='Income Group', labels=classified_data['income_group'].unique())
plt.show();

import plotly.express as px

# Bar chart of GDP per Capita by Country and Income Group
bar_fig = px.bar(economies_cleaned, x='code', y='gdp_percapita', color='income_group',
                 title='GDP Per Capita by Country and Income Group (2020)',
                 labels={'gdp_percapita': 'GDP Per Capita', 'code': 'Country Code'})
bar_fig.show();

# Scatter plot of GDP per Capita vs. Gross Savings by Income Group
scatter_fig = px.scatter(economies_cleaned, x='gdp_percapita', y='gross_savings', color='income_group',
                         hover_name='code', title='GDP Per Capita vs. Gross Savings (2020)',
                         labels={'gdp_percapita': 'GDP Per Capita', 'gross_savings': 'Gross Savings (%)'})
scatter_fig.show();

# Scatter plot of GDP per Capita vs. Unemployment Rate by Income Group
scatter_fig_2 = px.scatter(economies_cleaned, x='gdp_percapita', y='unemployment_rate', color='income_group',
                           hover_name='code', title='GDP Per Capita vs. Unemployment Rate (2020)',
                           labels={'gdp_percapita': 'GDP Per Capita', 'unemployment_rate': 'Unemployment Rate (%)'})
scatter_fig_2.show();

	year	gdp_percapita	gross_savings	inflation_rate	total_investment	unemployment_rate	exports	imports
count	561.000000	558.000000	490.000000	555.000000	490.000000	312.000000	509.000000	506.000000
mean	2015.000000	13447.838281	20.641665	9.762438	25.348976	8.894619	-0.844275	0.813121
std	4.086126	18481.107981	10.813159	103.013164	23.546022	5.605188	17.817279	15.644724
min	2010.000000	231.549000	-10.331000	-3.900000	0.521000	0.900000	-80.939000	-59.381000
25%	2010.000000	1842.815000	14.129000	0.731000	18.449250	5.252250	-8.528000	-8.253000
50%	2015.000000	5049.830000	20.536000	2.507000	22.808000	7.400000	1.000000	1.334000
75%	2020.000000	16509.697500	26.819750	5.406000	27.644750	10.772000	8.033000	9.348000
max	2020.000000	116921.110000	59.699000	2355.150000	363.411000	32.050000	159.103000	84.555000

	year	fertility_rate	life_expectancy	size
count	645.000000	627.000000	623.000000	6.450000e+02
mean	2015.000000	2.727907	71.553996	3.429149e+07
std	4.085651	1.386750	8.118422	1.346457e+08
min	2010.000000	0.837000	45.596000	1.024100e+04
25%	2010.000000	1.670000	65.742000	7.550310e+05
50%	2015.000000	2.216000	73.004000	6.292731e+06
75%	2020.000000	3.537500	77.720695	2.301265e+07
max	2020.000000	7.485000	85.497561	1.411100e+09

	code	country	year	gdp_percapita	gross_savings	inflation_rate	total_investment	unemployment_rate	exports	imports	income_group
9	ALB	Albania	2010	4097.83	20.023	3.615	31.318	14.000	10.473	-9.316	Upper middle income
10	ALB	Albania	2015	3953.61	15.804	1.868	26.237	17.100	5.272	0.076	Upper middle income
11	ALB	Albania	2020	5286.68	13.255	1.603	22.845	12.500	-28.951	-21.446	Upper middle income
15	ARG	Argentina	2010	10412.97	17.323	10.461	17.706	7.750	13.701	39.414	Upper middle income
17	ARG	Argentina	2020	8554.64	17.798	42.015	16.845	11.364	-13.124	-10.722	Upper middle income
...	...	...	...	...	...	...	...	...	...	...	...
541	VNM	Vietnam	2015	2582.39	26.444	0.631	27.339	2.330	9.713	15.426	Lower middle income
542	VNM	Vietnam	2020	3498.98	28.603	3.222	26.444	3.300	2.822	2.948	Lower middle income
552	ZAF	South Africa	2010	7311.74	18.012	4.264	19.513	24.875	7.718	10.794	Upper middle income
553	ZAF	South Africa	2015	5731.73	16.300	4.575	20.918	25.350	2.925	5.443	Upper middle income
554	ZAF	South Africa	2020	5067.15	14.602	3.268	12.426	29.175	-10.280	-16.615	Upper middle income

	code	country	year	gdp_percapita	gross_savings	inflation_rate	total_investment	unemployment_rate	exports	imports	income_group
3	AFG	Afghanistan	2010	631.490	59.699	2.179	30.269	NaN	9.768	32.285	Low income
4	AFG	Afghanistan	2015	711.337	22.223	-0.662	18.427	NaN	-11.585	15.309	Low income
5	AFG	Afghanistan	2020	580.817	27.132	5.607	16.420	NaN	-10.424	2.892	Low income
6	AGO	Angola	2010	3641.440	34.833	14.480	28.197	NaN	-3.266	-21.656	Lower middle income
7	AGO	Angola	2015	4354.920	28.491	9.159	34.202	NaN	6.721	-19.515	Lower middle income
...	...	...	...	...	...	...	...	...	...	...	...
553	ZAF	South Africa	2015	5731.730	16.300	4.575	20.918	25.350	2.925	5.443	Upper middle income
554	ZAF	South Africa	2020	5067.150	14.602	3.268	12.426	29.175	-10.280	-16.615	Upper middle income
555	ZMB	Zambia	2010	1456.050	37.405	8.500	29.878	NaN	19.476	32.492	Lower middle income
556	ZMB	Zambia	2015	1310.460	40.103	10.107	42.791	NaN	-11.407	0.696	Lower middle income
557	ZMB	Zambia	2020	981.311	36.030	16.350	34.514	NaN	1.143	2.635	Lower middle income

	code	country	year	gdp_percapita	gross_savings	inflation_rate	total_investment	unemployment_rate	exports	imports	income_group
0	ABW	Aruba	2010	24087.950	13.255	2.078	0.000	10.600	0.000	0.000	High income
1	ABW	Aruba	2015	27126.620	21.411	0.475	0.000	7.298	0.000	0.000	High income
2	ABW	Aruba	2020	21832.920	-7.521	-1.338	0.000	13.997	0.000	0.000	High income
3	AFG	Afghanistan	2010	631.490	59.699	2.179	30.269	0.000	9.768	32.285	Low income
4	AFG	Afghanistan	2015	711.337	22.223	-0.662	18.427	0.000	-11.585	15.309	Low income

	country_code	country	year	fertility_rate	life_expectancy	size	official_state_name	sovereignty	continent	region
0	ABW	Aruba	2010	1.941	75.404	100341	Aruba	Netherlands	North America	Caribbean
1	ABW	Aruba	2015	1.972	75.683	104257	Aruba	Netherlands	North America	Caribbean
2	ABW	Aruba	2020	1.325	75.723	106585	Aruba	Netherlands	North America	Caribbean
3	AFG	Afghanistan	2010	6.099	60.851	28189672	The Islamic Republic of Afghanistan	UN member	Asia	Southern and Central Asia
4	AFG	Afghanistan	2015	5.405	62.659	33753499	The Islamic Republic of Afghanistan	UN member	Asia	Southern and Central Asia

	code	country	year	gdp_percapita	gross_savings	inflation_rate	total_investment	unemployment_rate	exports	imports	income_group
0	ABW	Aruba	2010	24087.95	13.255	2.078	NaN	10.600	NaN	NaN	High income
1	ABW	Aruba	2015	27126.62	21.411	0.475	NaN	7.298	NaN	NaN	High income
2	ABW	Aruba	2020	21832.92	-7.521	-1.338	NaN	13.997	NaN	NaN	High income
12	ARE	United Arab Emirates	2010	35064.26	31.330	0.878	27.121	NaN	7.540	0.405	High income
13	ARE	United Arab Emirates	2015	37380.57	30.540	4.070	25.639	NaN	3.055	2.488	High income

	code	country	year	gdp_percapita	gross_savings	inflation_rate	total_investment	unemployment_rate	exports	imports	income_group
24	AUS	Australia	2010	56459.80	23.105	2.863	26.369	5.208	5.717	15.507	High income
25	AUS	Australia	2015	51484.05	21.608	1.485	25.880	6.050	6.533	1.962	High income
27	AUT	Austria	2010	46955.17	25.463	1.693	22.608	4.817	13.131	11.970	High income
28	AUT	Austria	2015	44267.81	25.531	0.808	23.806	5.742	3.049	3.630	High income
36	BEL	Belgium	2010	44448.17	24.751	2.334	23.127	8.308	8.484	7.171	High income

	country	year	fertility_rate	life_expectancy	size	official_state_name	sovereignty	continent	region
country_code
ABW	Aruba	2010	1.941	75.404	100341	Aruba	Netherlands	North America	Caribbean
ABW	Aruba	2015	1.972	75.683	104257	Aruba	Netherlands	North America	Caribbean
ABW	Aruba	2020	1.325	75.723	106585	Aruba	Netherlands	North America	Caribbean
AFG	Afghanistan	2010	6.099	60.851	28189672	The Islamic Republic of Afghanistan	UN member	Asia	Southern and Central Asia
AFG	Afghanistan	2015	5.405	62.659	33753499	The Islamic Republic of Afghanistan	UN member	Asia	Southern and Central Asia

	gdp_percapita	inflation_rate
income_group
High income	29529.305	0.8595
Low income	631.490	5.0490
Lower middle income	2012.150	4.4370
Not classified	10568.100	121.7380
Upper middle income	6083.870	2.7645

	fertility_rate	life_expectancy
continent
Africa	4.5370	61.123500
Asia	2.1940	73.285500
Europe	1.5550	80.182927
North America	1.8350	74.821000
Oceania	3.2025	70.311000
South America	2.3195	73.688000

	gdp_percapita			inflation_rate
year	2010	2015	2020	2010	2015	2020
income_group
High income	33265.256167	33484.692333	34595.264167	2.168550	0.910950	0.666333
Low income	736.990261	685.146565	644.576652	5.915000	7.187591	14.530182
Lower middle income	2151.058283	2399.781453	2437.989151	5.778264	4.951170	18.002566
Not classified	11158.180000	10568.100000	1690.660000	28.187000	121.738000	2355.150000
Upper middle income	6463.234694	6919.517551	6654.425714	4.251592	3.186125	3.886408

	fertility_rate			life_expectancy
year	2010	2015	2020	2010	2015	2020
continent
Africa	4.713426	4.424685	4.104963	59.746813	62.374598	63.572531
Asia	2.559520	2.447560	2.245120	72.711414	73.914594	74.207140
Europe	1.635364	1.614674	1.534233	77.781258	78.743396	78.807279
North America	2.101258	1.960485	1.767803	74.193234	75.124420	74.720697
Oceania	3.328375	3.059412	2.755941	70.761218	71.353058	72.110066
South America	2.405833	2.266500	2.062083	73.001000	74.125333	73.173833

title: 'Walkthroughs and Exercises for Data Analysis in Python' author: "Dr. Chester Ismay"¶

Intro: Foundations of Data Analysis with Python¶

Walkthrough #1: Setting Up the Python Environment¶

Exercise #1: Setting Up the Python Environment¶

Module 1: Data Wrangling with Pandas¶

Walkthrough #2: Loading and Inspecting Data with Pandas¶

Import data from a CSV or from an Excel file¶

Perform an initial exploration of the data¶

Exercise #2: Loading and Inspecting Data with Pandas¶

Walkthrough #3: Cleaning and Preparing Data with Pandas¶

Handle missing data¶

Remove rows¶

Remove columns¶

Replace missing values with specific value¶

Convert a column to a different data type¶

Rename a column¶

Changing a DataFrame’s index¶

Set the index¶

Reset the index¶

Filtering rows based on conditions¶

Conditions on a single column¶

Conditions on multiple columns¶

Exercise #3: Cleaning and Preparing Data with Pandas¶

Handle Missing Data¶

Remove rows¶

Remove columns¶

Replace missing values with specific value¶

Convert a Column to a Different Data Type and Rename a Column¶

Convert a Column to a Different Data Type¶

Rename a Column¶

Change a DataFrame’s Index and Filter a DataFrame¶

Change a DataFrame’s Index¶

Filter a DataFrame¶

Walkthrough #4: Transforming and Aggregating Data with Pandas¶

Grouping data¶

Applying Functions¶

Applying a function element-wise with map()¶

Applying a Function to Groups with groupby() and agg()¶

Summary tables¶

Analyzing categorical data¶

Using cross-tabulation¶

By getting group counts¶

Exercise #4: Transforming and Aggregating Data with Pandas¶

Grouping Data¶

Applying Functions¶

Applying a function element-wise with map()¶

Applying a function to groups with groupby() and agg()¶

Summary Tables¶

Analyzing Categorical Data¶

Using Cross-Tabulation¶

By Getting Group Counts¶

Module 2: Data Visualization Basics with Matplotlib and Seaborn¶

Walkthrough #5: Creating Basic Plots with Matplotlib¶

Line plot¶

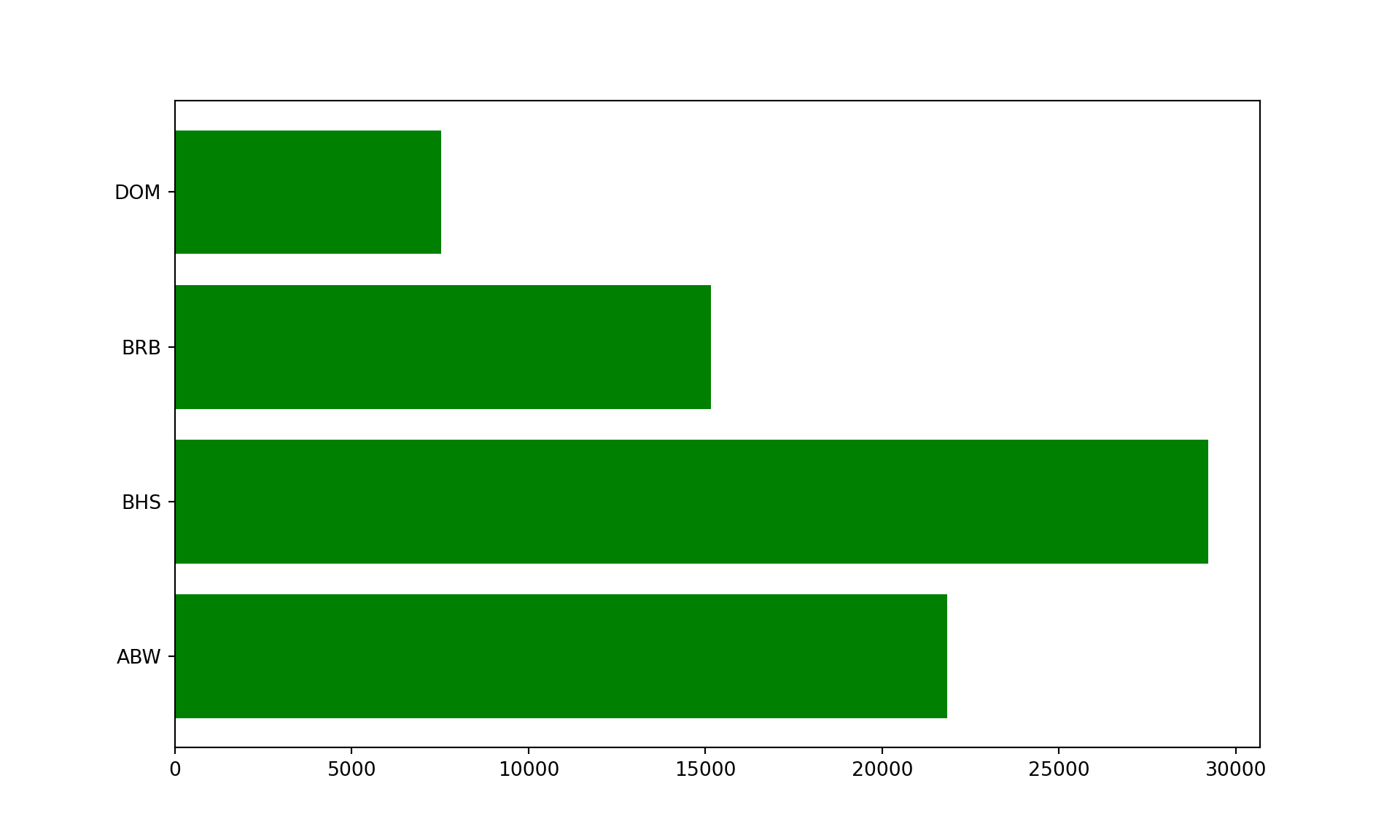

Bar chart¶

Adding labels and titles¶

Adjusting axes and tick marks¶

Exercise #5: Creating Basic Plots with Matplotlib¶

Line Plot¶

Bar Chart¶

Adding Labels and Titles¶

Adjusting Axes and Tick Marks¶

Walkthrough #6: Data Visualization Techniques with Seaborn¶

Heatmap¶

Pair plot¶

Violin plot¶

Customizing Seaborn plots¶

Exercise #6: Data Visualization Techniques with Seaborn¶

Heatmap¶

Pair Plot¶

Violin Plot¶

Customizing Seaborn Plots¶

Module 3: Interactive Data Visualization with Plotly¶

Walkthrough #7: Interactive Charts and Dashboards with Plotly¶

Basic interactive chart¶

Adding interactive elements¶

Designing a simple dashboard¶

Exercise #7: Interactive Charts and Dashboards with Plotly¶

Basic Interactive Chart¶

Adding Interactive Elements¶

title: 'Walkthroughs and Exercises for Data Analysis in Python'
author: "Dr. Chester Ismay"¶

Applying a function element-wise with `map()`¶

Applying a Function to Groups with `groupby()` and `agg()`¶

Applying a function element-wise with `map()`¶

Applying a function to groups with `groupby()` and `agg()`¶
